Name: 4 Way Cassette Fan Coil Unit Ceiling Mounted For Home / Office / School / Hotel
Brand: Guangdong Nuoxin Industry Co., Ltd.
SKU: FP-34KM to FP-238KM
Price: 250.00 USD
Availability: InStock

Home > products > Water Fan Coil Unit >

4 Way Cassette Fan Coil Unit Ceiling Mounted For Home / Office / School / Hotel

Cassette Fan Coil Unit Ceiling Mounted

4 Way Cassette Fan Coil Unit

Hotel Cassette Fan Coil Unit

Place of Origin:

China

Brand Name:

NOXIN

Certification:

CE, ISO9001

Model Number:

FP-34KM to FP-238KM

Chat Now

Request A Quote

Product Details

Name:

Ceiling Suspended 4-Way Cassette Fan Coil Unit

Application:

Home, Office, School, Market, Hall, Hotel Etc

Function:

Cooling & Heating

Cooling Capacity:

1.8KW - 12.6KW

Heating Capacity:

2.7KW - 18.9KW

Air Flow:

340m3/h - 2380m3/h

Control:

Remote Controller +Thermostat

Power Supply:

220V/1Ph/50Hz

Air Outlet:

1-Way. 2-Way, 4-Way, 8-Way

Mounted Type:

Ceiling Mounted

Water Pipe:

DN20

Highlight:

Cassette Fan Coil Unit Ceiling Mounted

4 Way Cassette Fan Coil Unit

Hotel Cassette Fan Coil Unit

Payment & Shipping Terms

Minimum Order Quantity

Price

200-300USD

Packaging Details

Carton Box

Delivery Time

10-25 days

Payment Terms

L/C,T/T

Supply Ability

1000 Units Per Month

Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School

Chat Now

Cassette / Concealed / Vertical / Wall Mounted Fan Coil Unit FCU 220V 1PH 50HZ

Chat Now

86-18676926960

Aaron.nuoxinac@hotmail.com

Chat Now

Product Description

Ceiling Mounted 4-Way Cassette Fan Coil Unit For Home, Office, School, Hotel Etc

4 Way Cassette Fan Coil Unit Ceiling Mounted For Home / Office / School / Hotel

*Product Introduction

The fan coil unit is the terminal unit that directly delivers cold and hot air to the room through external cooling and hot water. It has the functions of cooling, heating or cooling / heating respectively. It is mainly composed of a volute centrifugal fan, heat exchanger coil, fan motor, condensation pan and galvanized sheet casing, it is a universal terminal device for the water type central air conditioning and heat pump systems.

The cassette fan coil unit also called ceiling type fan coil unit with air volume ranges from 340m³/h to 2380m³/h ( high speed ). This FCU is ceiling mounted with 4-way air outlets, wide-angle air supply, only the air inlet/outlet panel is exposed outside the ceiling, the panel is beautiful, and the height is only 300-320mm, does not take up space, easy maintenance.
With condensation drainage pump and remote controller, the drainage pump's lift is 85cm, and the thermostat is optional with remote controller.
The Cassette fan coil unit could be designed into 2 tubes & 4 tubes, applicable to hotel halls, hotel halls, shopping malls, meeting rooms and other public scenes.

*Fan Coil Unit Features

The fan coil unit with thin design with total heiht 300-320mm;
Standard type with remote controller while the thermostat is optional;
"C" type Hydrophilic aluminum fins heat exchanger;
With 4-way air outlets, wide-angle air supply;
Large diameter vortex centrifugal fan, low noise operation;
With 2 tubes & 4 tubes design, optional for clients;
With washable air filter which is easy to clean & change.

*Fan Coil Unit Parameter

Model		FP~	34KM	51KM	68KM	85KM	102KM	136KM	170KM	204KM	238KM
Air Flow	High Speed	CFM	200	300	400	500	600	800	1000	1200	1400
	H	m3/h	340	510	680	850	1020	1360	1700	2040	2380
	M	m3/h	280	390	520	640	790	1030	1280	1550	1800
	L	m3/h	180	260	350	430	520	690	860	1030	1200
Cooling Capacity	High Speed	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
	H	BTU/h	6143.3	9215.0	12286.7	15358.4	18430.0	24573.4	30716.7	36860.1	43003.4
	H	Ton	0.512	0.768	1.024	1.279	1.535	2.047	2.559	3.071	3.583
	M	W	1631	2279	2814	3750	4322	5534	7512	8088	9681
	L	W	1048	1519	1894	2519	2854	3694	5008	5554	6454
Heating Capacity	High Speed	W	2700	4050	5400	6750	8100	10800	13500	16200	18900
	H	BTU/h	9215.0	13822.5	18430.0	23037.5	27645.1	36860.1	46075.1	55290.1	64505.1
	M	W	2454	3671	4191	5421	6335	8179	11005	12353	14521
	L	W	1578	2447	2821	3600	4170	5479	7335	8482	9681
Static Pressrue		Pa	0	0	0	0	0	0	0	0	0
Power Supply		V/Ph/Hz	220V,1Ph, 50/60Hz
Control		/	Standard: Remote controller; Optional: Thermostat(Wired controller with 7m wire)
Power Input		W	34	50	58	72	92	126	128	152	198
Running Current		A	0.151	0.225	0.258	0.32	0.385	0.561	0.547	0.677	0.882
Water Flow		m3/h	0.31	0.46	0.62	0.77	0.93	1.24	1.55	1.86	2.17
Water Resistance		kPa	14	14	16	18	25	25	39	44	46
Connection Pipe		in/out	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
Drainage Pipe			ø26	ø26	ø26	ø26	ø26	ø26	ø26	ø26	ø26

*Fan Coil Unit Main Parts

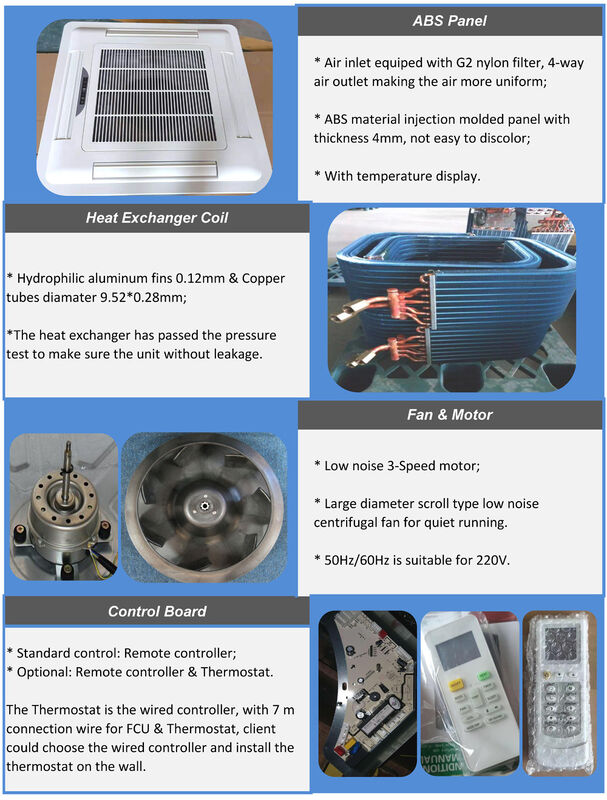

ABS Panel

* Air inlet equiped with G2 nylon filter, 4-way air outlet making the air more uniform;

* ABS material injection molded panel with thickness 4mm, not easy to discolor;

* With temperature display.

Heat Exchanger Coil

* Hydrophilic aluminum fins 0.12mm & Copper tubes diamater 9.52*0.28mm;

*The heat exchanger has passed the pressure test to make sure the unit without leakage.

Fan & Motor

* Low noise 3-Speed motor;

* Large diameter scroll type low noise centrifugal fan for quiet running.

* 50Hz/60Hz is suitable for 220V.

Control Board

* Standard control: Remote controller;

* Optional: Remote controller & Thermostat.

The Thermostat is the wired controller, with 7 m connection wire for FCU & Thermostat, client could choose the wired controller and install the thermostat on the wall.

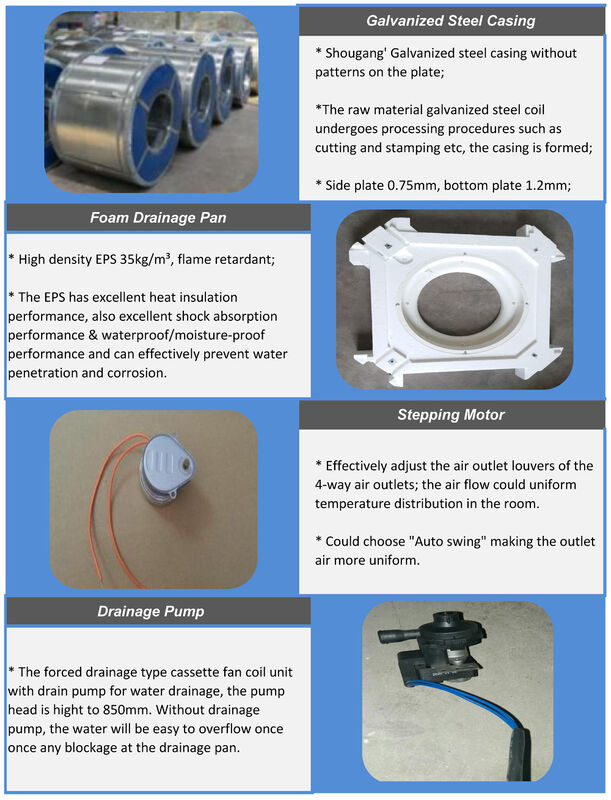

Galvanized Steel Casing

* Shougang' Galvanized steel casing without patterns on the plate;

*The raw material galvanized steel coil undergoes processing procedures such as cutting and stamping etc, the casing is formed;

* Side plate 0.75mm, bottom plate 1.2mm;"

Foam Drainage Pan

* High density EPS 35kg/m³, flame retardant;

* The EPS has excellent heat insulation performance, also excellent shock absorption performance & waterproof/moisture-proof performance and can effectively prevent water penetration and corrosion.

Stepping Motor

* Effectively adjust the air outlet louvers of the 4-way air outlets; the air flow could uniform temperature distribution in the room.

* Could choose ""Auto swing"" making the outlet air more uniform.

Drainage Pump

The forced drainage type cassette fan coil unit with drain pump for water drainage, the pump head is hight to 850mm. Without drainage pump, the water will be easy to overflow once once any blockage at the drainage pan.

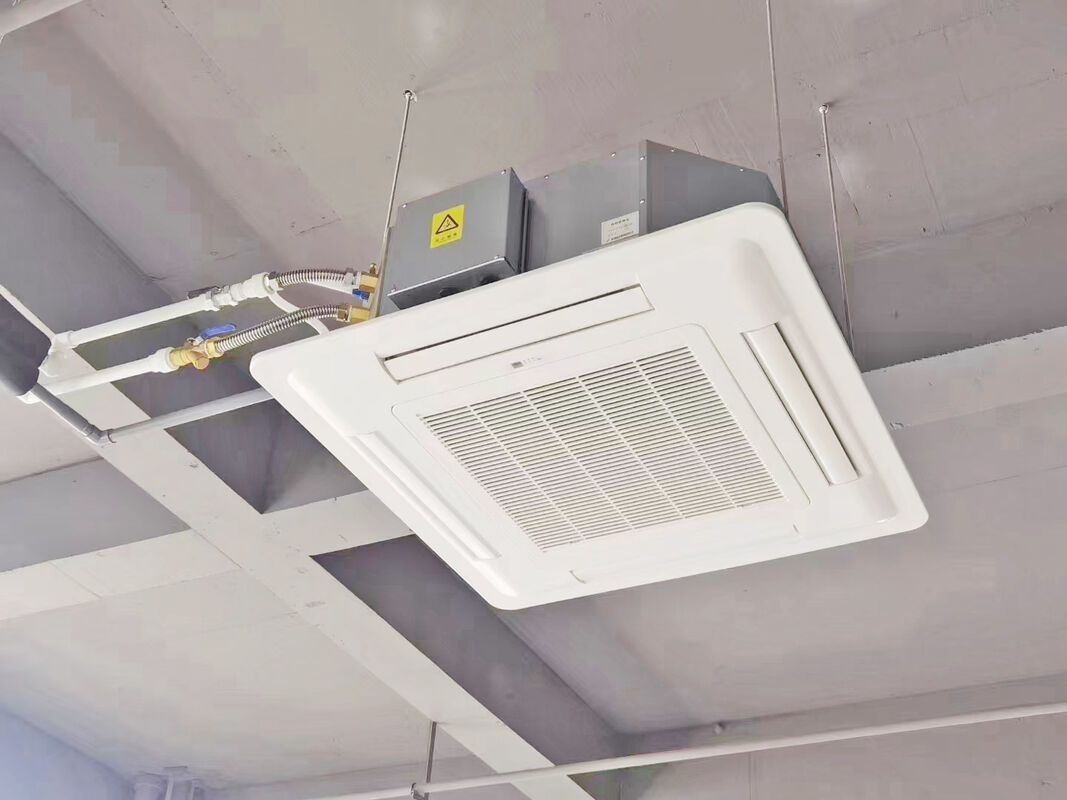

*Fan Coil Unit Installation

4 Way Cassette Fan Coil Unit Ceiling Mounted For Home / Office / School / Hotel
