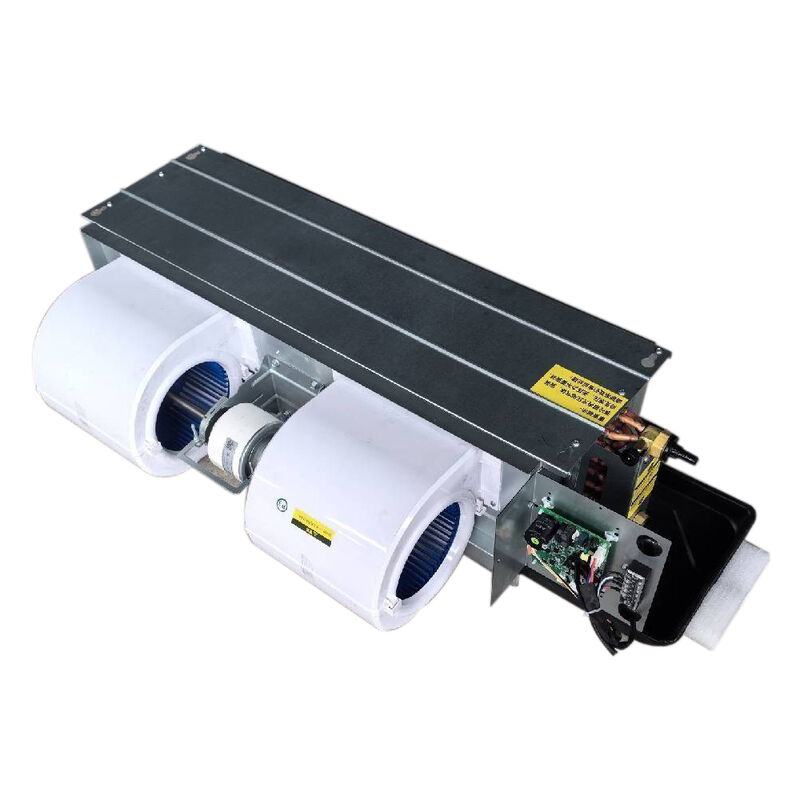

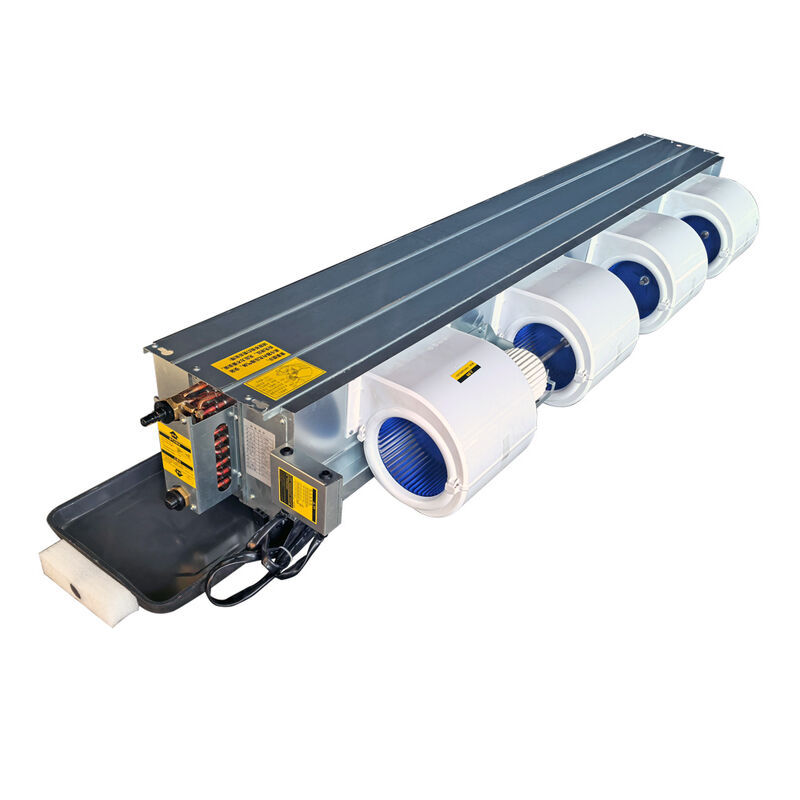

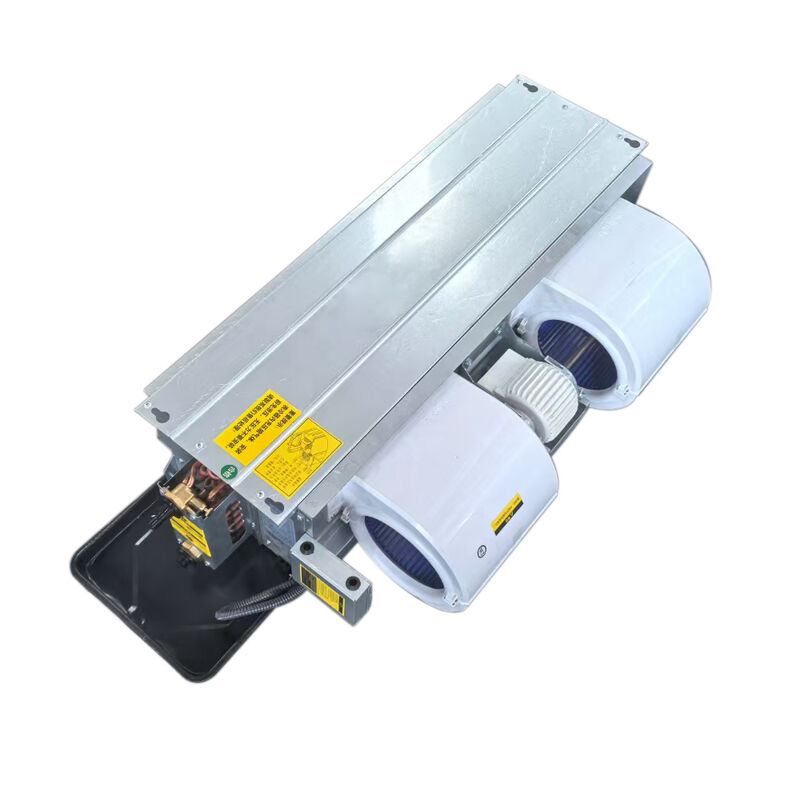

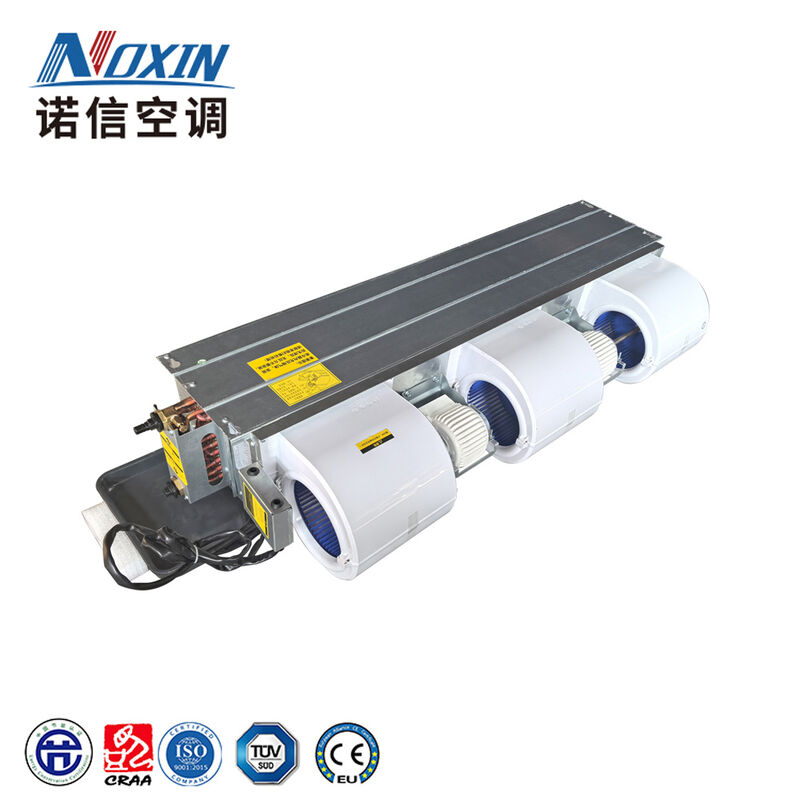

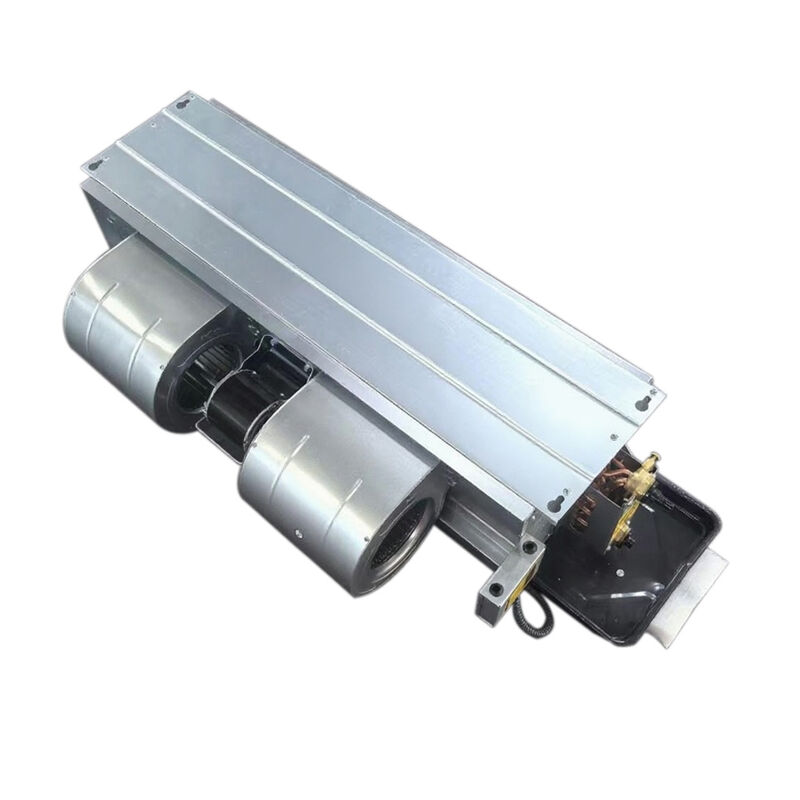

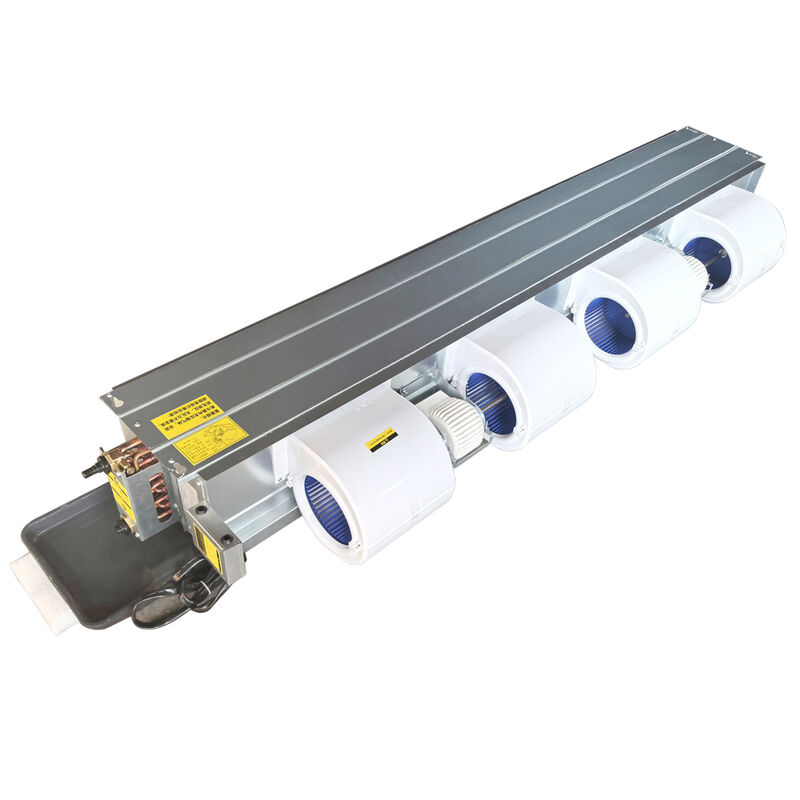

Name: Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School
Brand: Guangdong Nuoxin Industry Co., Ltd.
SKU: FP-34 to FP-238
Price: 140.00 USD
Availability: InStock

Home > products > Water Fan Coil Unit >

Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School

School Chilled Water Fan Coil Unit

Water Fan Coil Unit Ceiling Concealed

Ceiling Suspended Fan Coil Unit

Place of Origin:

China

Brand Name:

NOXIN

Certification:

CE, ISO9001

Model Number:

FP-34 to FP-238

Chat Now

Request A Quote

Product Details

Name:

Chilled Water Fan Coil Unit

Application:

Home, Office, School, Market, Hall, Hotel Etc

Function:

Cooling & Heating

Cooling Capacity:

1.8KW - 12.6KW

Heating Capacity:

2.7KW - 18.9KW

Air Flow:

340m3/h - 2380m3/h

Controller:

Thermostat / Remote Controller

Static Pressure:

12Pa, 30Pa, 50Pa

Air Filter:

Washable Nylon Filter

Power Supply:

220V/1Ph/50Hz Or 60Hz

Motor:

AC / DC Motors

Highlight:

School Chilled Water Fan Coil Unit

Water Fan Coil Unit Ceiling Concealed

Ceiling Suspended Fan Coil Unit

Payment & Shipping Terms

Minimum Order Quantity

Price

80-200USD

Packaging Details

Carton Box

Delivery Time

10-25 days

Payment Terms

L/C,T/T,Western Union

Supply Ability

2000 Units Per Month

Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School

Chat Now

Cassette / Concealed / Vertical / Wall Mounted Fan Coil Unit FCU 220V 1PH 50HZ

Chat Now

86-18676926960

Aaron.nuoxinac@hotmail.com

Chat Now

Product Description

Chilled Water Type Ceiling Concealed Suspended Mounted Fan Coil Unit for Hotel & School

Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School

*Product Introduction

The fan coil unit is the terminal unit that directly delivers cold and hot air to the room through external cooling and hot water. It has the functions of cooling, heating or cooling / heating respectively. It is mainly composed of a volute centrifugal fan, heat exchanger coil, fan motor, condensation pan and galvanized sheet casing, it is a universal terminal device for the water type central air conditioning and heat pump systems.

The horizontal concealed fan coil unit also called duct type fan coil unit which is ceiling mounted, with air volume ranges from 340m³/h to 2380m³/h (high speed). The series has rigorous design and reasonable manufacturing structure. Widely used in hotels, apartments, office buildings, hospitals and other public buildings.

*FCU Structure

1) Equipped with low-noise fan and has undergone strict dynamic and static balance tests.

2) Divided into low static pressure and high static pressure (30Pa, 50Pa) units. Large fan coil units are available in standard and high static pressure units to meet different needs and have a wider trial range.

3) One-time molded condensate drain pan is integrally bonded with thermal insulation materials and spray-coated internally, making it highly anti-corrosive.

4) The unit has a compact structure, the whole unit is light with beautiful appearance, and the casing is made of high-quality galvanized plate to ensure it is not easy to rust. The end/top plate are 0.9~1.0mm thick.

5) Heat exchange efficiency is high. The high-quality copper tubes are equipped with unique window-type aluminum fins. After advanced mechanical tube expansion process, the copper tubes and aluminum fins are in good contact, creating a heat exchanger with the highest heat transfer efficiency.

6) High-quality motor bearings adopt Xinjun or Langqiwei motors, which are of stable quality, safe and reliable.

Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School

*Product Parameter

Model		FP~	34WA	51WA	68WA	85WA	102WA	136WA	170WA	204WA	238WA
Air Flow	High speed (CFM)		200	300	400	500	600	800	1000	1200	1400
Air Flow (m3/h)	High speed		340	510	680	850	1020	1360	1700	2040	2380
	Medium speed		255	383	510	638	765	1020	1275	1530	1785
	Low speed		170	255	340	425	510	680	850	1020	1190
Cooling Capacity	High	W	1800	2700	3600	4500	5400	7200	9000	10800	12600
		BTU	6143	9215	12287	15359	18430	24574	30717	36860	43004
		Ton	0.51	0.77	1.02	1.28	1.54	2.05	2.56	3.07	3.58
	Medium	W	1620	2440	3290	4120	4850	6550	8190	9730	11580
	Medium	BTU	5529	8328	11229	14062	16553	22355	27952	33208	39523
	Low	W	1310	2010	2650	3320	3900	5300	6610	7860	9350
	Low	BTU	4471	6860	9044	11331	13311	18089	22560	26826	31912
Heating Capacity	High	W	2700	4050	5400	6750	8100	10800	13500	16200	18900
	Medium	W	2350	3520	4530	6040	6850	9260	11740	14140	16360
	Low	W	1620	2470	3130	4170	4740	6500	8180	9710	11290
Cooling water temperature			7-12℃
Hot water temperature			40-60℃
Power supply			AC220V, 50/60Hz

*Product Main Parts

1) Galvanized Steel Casing

FCU with compact structure, the whole unit is light with beautiful appearance, the casing is made of high-quality galvanized plate also covered with protective film to ensure it is not easy to rust.

2) ABS/ Galvanized Fan Blower

Galvanized Fan Blower: Made of galvanizedsheet, it exhibits excellent fire resistance andheat distortion resistance, operates smoothlywith low noise.

ABS Fan Blower: Made from ABS plastic, itfeatures high strength & corrosion resistance,making it suitable for wet environments. It isalso resistant to deformation and operates withlow noise.

3) Quality Copper Tube

Standard 3 Rows hot & cold heat exchanger with high efficiency heat exchange, which can quickly reach the appropriate temperature, the heat exchanger already passes the pressure test, with air vent for air discharge in clients' pipeline installation.

4) Hydrophilic Aluminum Fins

Blue hydrophilic aluminum fins, with widened width, are more corrosion-resistant than white aluminum. Water droplets are less likely to adhere and stains are less likely to accumulate.

5) 3-Speed Motor

Low-noise copper wire 3-speed motor, with12Pa, 30Pa, 50Pa different static pressure,fully enclosed ball bearings, stable operation.

Chilled Water Fan Coil Unit Ceiling Concealed Suspended Mounted For Hotel / School

*Product Installation

*Exhibition
