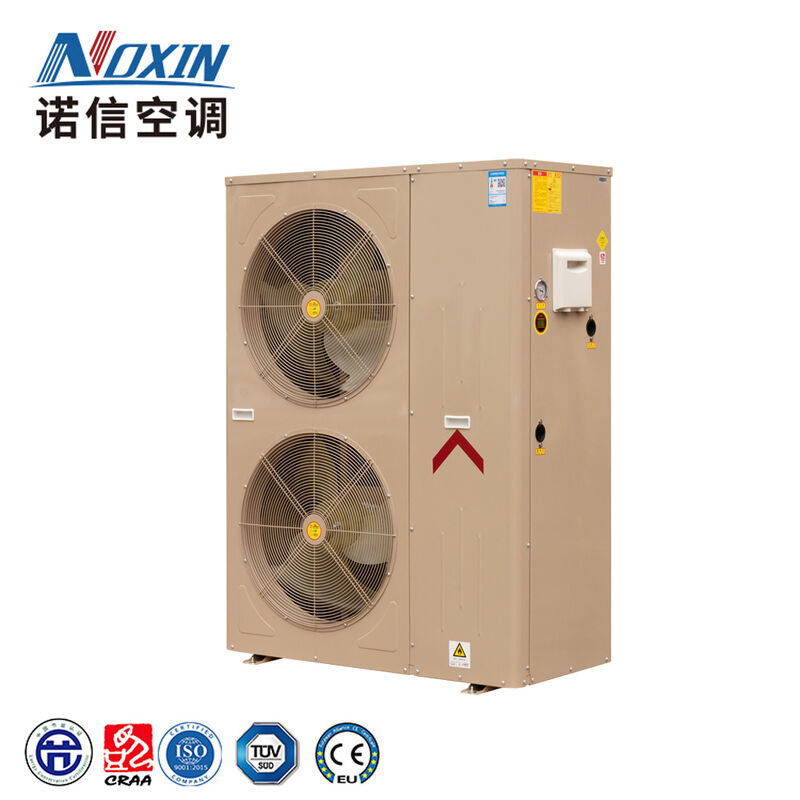

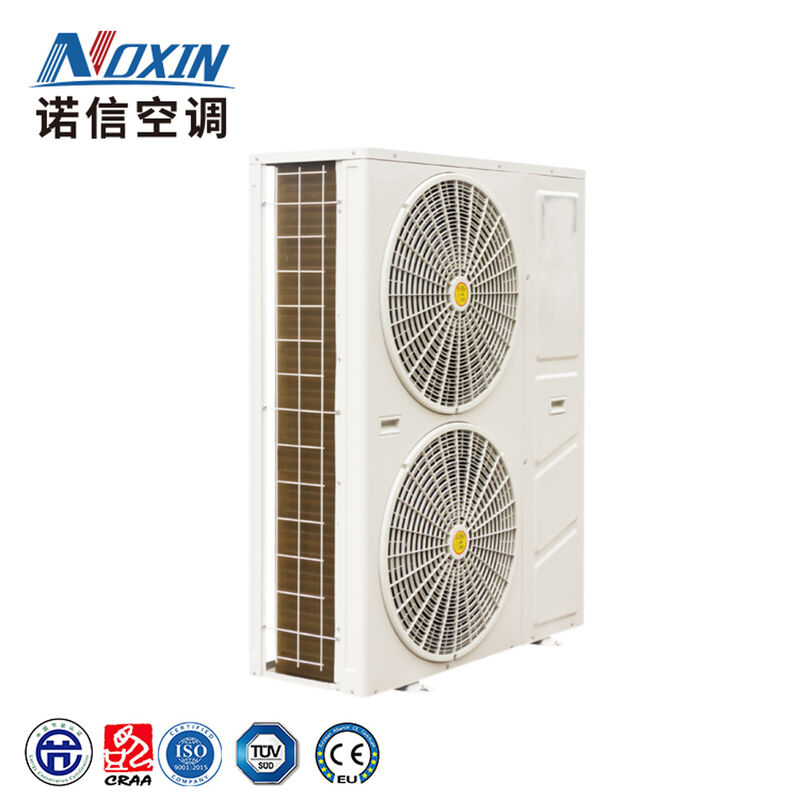

Name: Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System
Brand: Guangdong Nuoxin Industry Co., Ltd.
SKU: NFLWX-09RBI, NFLWX-16RBI, NFLWX-18RBI
Price: 5,750.00 USD
Availability: InStock

Home > products > Air Source Heat Pump >

Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System

Air Source Heat Pump ASHP

Air To Air Source Heat Pump

ASHP Air Source Heat Pump

Place of Origin:

China

Brand Name:

NOXIN

Certification:

CE, ISO9001

Model Number:

NFLWX-09RBI, NFLWX-16RBI, NFLWX-18RBI

Chat Now

Request A Quote

Product Details

Name:

Air Source Heat Pump ASHP

Function:

Cooling & Heating, Hot Water

Application:

Hotel, Apartment, Bath Center, School, Hospital Etc

Compressor:

Scroll Inverter

Evaporator:

Finned Copper Tube

Condenser:

Tube In Tube Type

Controller:

Color Touch Screen

AC Contactor:

France Sch Brand

Expansion Valve:

Electric Type

Filter:

Dry Filter

Refrigerant:

R410A / R32

Power Supply:

380V/3Ph/50Hz

Highlight:

Air Source Heat Pump ASHP

Air To Air Source Heat Pump

ASHP Air Source Heat Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

1500-10000USD

Packaging Details

Stretch Film / Wooden Tray / Wooden Tray

Delivery Time

15-25

Payment Terms

L/C,T/T

Supply Ability

500

Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System

Chat Now

86-18676926960

Aaron.nuoxinac@hotmail.com

Chat Now

Product Description

Air Souce Heat Pump For HVAC System Of Hotel, Apartment, Bath Center, School, Hospital Etc

Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System

※ Introduction

The air soure heat pump unit follows the law of conservation and thermodynamics. It is driven by electrical energy according to the principle of inverse Canno cycle, and the low-grade heat energy in nature and other natural circles such as the atmosphere and water is absorbed into high-grade heat energy equipment that can be available.

The heat pump can be compared with the water pump. The water cannot flow from a low place to a high place. To transport the water at the low place to a high place, a pump must be used to consume a part of the electricity in order to send the water to the water tank in the high place Essence Similarly, according to the second law of thermodynamics, heat energy can not be spontaneously transferred from low-temperature environment to high-temperature environments. In order to achieve this goal, there must have a machine to consume some mechanical skills (such as electricity) then the heat energy in the high temperature is moved, so that the machine is called "heat pump".

The role of the air source heat pump is to remove the low grade calories in the air, and the power used by itself into heat energy, and send it to the high-temperature water or the air together. An air source heat pump is mainly composed of four parts: Evaporator, Compressor, Condenser, and Expansion valve. By the cycle process of continuously completing Evaporation (absorbing heat in the atmosphere) → Compression → Condensation (Release heat) → Throttling → Evaporation again, thereby transferring the heat energy in the atmosphere to the water or indoors.

※ Application

● Air Conditioner System & Hot Water Supply
Hotel, Apartment, Bath Center, School, Stadium, Factory, Greenhouse, Hospital etc.

※ Main Parts

Dedicated Compressor

Adopts the air source heat pump dedicated compressors, using the flexible turbine technology, can be more adaptable to run stably in harsh environments for a long time, and with multiple security protection to effectively ensure the service life of the unit.

High-efficiency Heat Exchanger

The quality of autonomous production is more reliable, the heat exchange efficiency of heat exchanger high, and large differential temperature & small flow, so that the system safe water outlet temperature reaches 60 °C, and the refrigerant circuit gap is small, reducing the disadvantages of the heat exchanger oil.

Titanium Evaporator

It is not easy to stick to dust, corrosion resistance, long-term energy saving, application of nano -titanium technology, plating a layer of nano -titanium coating on the evaporator to further improve the efficiency of the unit and long-term efficiency.

Smart Controller

The microcomputer control system can be used to achieve a variety of working status by casual switching. It has a variety of functions such as mobile phone control and remote monitoring. The control system has more than 30 protection measures to the heat pump's abnormal failures to ensure the unit's stable and longer operation.

Electronic Expansion Valve

The control method of digital technology controls the work quality to achieve the ideal flow rate, thereby reducing the energy consumption of compression machines and increasing the COP value. It has a level 0-500 orderly streaming function, which keeps the heat pump system running in a stable state, greatly reducing the failure rate.

Four-way Reversing Valve

Using the internationally wellknown brand Sanhua four-way reversing valve can smoothly convey the system operation mode, rationally control the operation of the unit, and effectively control the system defrosting under low temperature operating conditions.

※ Specification

Model		NFLWX~	NFLWX-09RBI	NFLWX-16RBI	NFLWX-18RBI	NFLWX-20RBI
Model		HP	3HP	5HP	6HP	7HP
Nominal Heating Condition (7°C)	Nominal Heating Capacity	KW	8.85	16.60	17.80	19.10
	Input Power	KW	2.68	5.00	4.90	5.70
	COP	W/W	3.30	3.32	3.63	3.35
Nominal Heating Condition (-12°C)	Nominal Heating Capacity	KW	6.02	11.60	13.50	15.40
	Input Power	KW	2.41	4.60	5.20	6.00
	COP	W/W	2.50	2.52	2.60	2.57
Nominal Heating Condition (-20°C)	Nominal Heating Capacity	KW	4.85	9.80	11.50	12.10
	Input Power	KW	2.36	4.50	5.10	5.60
	COP	W/W	2.06	2.18	2.25	2.16
Nominal Cooling Condition (35°C)	Cooling Capacity	KW	7.19	12.45	15.00	17.00
	Input Power	KW	2.66	4.60	5.35	6.10
	COP	W/W	2.70	2.71	2.80	2.79
Power Supply		V/50Hz	220 / 50	220/ 50	220/ 50	220/ 50
IPLV(H) / PLV(C)		/	2.9 / 3.1	2.9 / 3.1	2.9 / 3.1	2.9 / 3.1
APF		/	3.10	3.10	3.1	3.1
Max. Input power		KW	5.0	7.00	8.00	9.00
Max. Running current		A	23.5	31.20	36.60	40.50
Electric Safety / Water-Proof Grade		/	I Class／IPX4
Exhaust / Suction Side Allowed Pressure		MPa	4.4 / 1.5
Gas / Water Side Max. Working Pressure		MPa	4.4 / 1.0
High / Low Pressure Side Max. Pressure		MPa	4.4 / 1.5
Water Side / Max. Working Pressure		KPa/MPa	≤39 / 1.0	≤68 / 1.0	≤68 / 1.0	≤68 / 1.0
Noise		dB(A)	55	58	62	62
Circulating Water Flow		m³/h	1.2	2.11	2.58	2.93
Refrigerant / Charged Volume		Kg	R410A / 1.7	R410A / 3.1	R410A / 3.2	R410A / 3.4
Weight		Kg	95	120	125	138
Inlet / Outlet Pipe Dimater		DN	25
Overall Dimension		mm	1076478803	10764781334
Execution Standard		/	GB/T25127.2-2020/GB37480-2019

Model		NFLWX~	NFLWX-24RBII	NFLWX-28RBII	NFLWX-32RBII	NFLWX-44RBII
Model		HP	8HP	10HP	12HP	15HP
Nominal Heating Condition (7°C)	Nominal Heating Capacity	KW	24.00	27.50	31.48	43.50
	Input Power	KW	6.60	7.35	8.32	13.00
	COP	W/W	3.64	3.74	3.78	3.35
Nominal Heating Condition (-12°C)	Nominal Heating Capacity	KW	16.80	18.60	22.00	28.80
	Input Power	KW	6.70	7.29	8.50	11.00
	COP	W/W	2.5	2.55	2.58	2.62
Nominal Heating Condition (-20°C)	Nominal Heating Capacity	KW	13.60	15.35	18.80	24.30
	Input Power	KW	6.30	6.97	8.35	10.65
	COP	W/W	2.15	2.20	2.25	2.28
Nominal Cooling Condition (35°C)	Cooling Capacity	KW	17.10	20.70	24.50	31.30
	Input Power	KW	6.30	7.63	9.01	11.50
	COP	W/W	2.7	2.71	2.72	2.72
Power Supply		V/50Hz	380/ 50	380/ 50	380/ 50	380/ 50
IPLV(H) / PLV(C)		/	2.9 / 3.0	2.9 / 3.1	2.9 / 3.1	2.9 / 3.1
APF		/	3.00	3.10	3.1	3.1
Max. Input power		KW	10.00	12.00	15.00	18.00
Max. Running current		A	24.50	26.20	31.30	36.60
Electric Safety / Water-Proof Grade		/	I Class／IPX4
Exhaust / Suction Side Allowed Pressure		MPa	4.4 / 1.5
Gas / Water Side Max. Working Pressure		MPa	4.4 / 1.0
High / Low Pressure Side Max. Pressure		MPa	4.4 / 1.5
Water Side / Max. Working Pressure		KPa/MPa	≤68 / 1.0	≤68 / 1.0	≤68 / 1.0	≤68 / 1.0
Noise		dB(A)	62	62	63	63
Circulating Water Flow		m³/h	2.95	3.5	3.8	5.33
Refrigerant / Charged Volume		Kg	R410A / 3.6	R410A / 4.0	R410A / 5.0	R410A / 7.8
Weight		Kg	170	190	240	280
Inlet / Outlet Pipe Dimater		DN	32
Overall Dimension		mm	11605001600		12006301650
Execution Standard		/	GB/T25127.2-2020/GB37480-2019

Model		NFLWX~	NFLWX-46RBII	NFLWX-92RBII	NFLWX-184RBII
Model		HP	15HP	30HP	60HP
Nominal Heating Condition (7°C)	Nominal Heating Capacity	KW	46.18	91.53	184.63
	Input Power	KW	12.83	25.4	50.97
	COP	W/W	3.60	3.60	3.62
Nominal Heating Condition (-12°C)	Nominal Heating Capacity	KW	31.05	61.3	121.8
	Input Power	KW	11.71	23.45	47.34
	COP	W/W	2.65	2.61	2.57
Nominal Heating Condition (-20°C)	Nominal Heating Capacity	KW	25.19	49.5	100.76
	Input Power	KW	10.95	22.5	44.58
	COP	W/W	2.30	2.20	2.26
Nominal Cooling Condition (35°C)	Cooling Capacity	KW	34.81	67.15	137.00
	Input Power	KW	12.65	24.6	48.92
	COP	W/W	2.75	2.73	2.80
Power Supply		V/50Hz	380	380	380
IPLV(H) / PLV(C)		/	3.26/3.43	3.21/3.4	3.22/3.4
APF		/	3.43	3.40	3.40
Max. Input power		KW	16.00	32.00	71.00
Max. Running current		A	33.00	64.00	140.00
Electric Safety / Water-Proof Grade		/	Class I / IPX4
Exhaust / Suction Side Allowed Pressure		MPa	4.4/1.5
Gas / Water Side Max. Working Pressure		MPa	4.4/1.0
High / Low Pressure Side Max. Pressure		MPa	4.4/4.4
Water Side / Max. Working Pressure		MPa	≤86 / 1.0	≤85 / 1.0	≤50 / 1.0
Noise		dB(A)	61	68	72
Circulating Water Flow		m³/h	5.99	11.55	23.56
Refrigerant / Charged Volume		Kg	R410A/7.6	R410A/7.6*2	R410A/7.8*4
Weight		Kg	258	520	1480
Inlet / Outlet Pipe Dimater		DN	40	65	80
Overall Dimension		mm	12056301656	19909602030	235013002510
Execution Standard		/	GB/T251272-2020/GB37480-2019

※ Projects

Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System

※ Package

※ Company Profile

Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System

Nuoxin Company has five major production bases, namely the Dongguan production base, the Zhejiang production base, the Vietnam production base, the Thailand production base, and the Sichuan production base, covering a total area of approximately 200,000 square meters. Its products are sold worldwide and it maintains close cooperative relationships with Southeast Asia, the Middle East, Africa, North America, and South America on a long-term basis.

Hotel / Apartment Air To Air Source Heat Pump ASHP For HVAC System

Guangdong Nuoxin Industry Co., Ltd. (Hereinafter referred to as "Nuoxin") Established in [2018 Year], "Nuoxin" is a widely known in delivering tailored industrial air conditioner solutions, specializing in non-standard customization for diverse sectors. Our main products including Water Chiller, Water and DX system central AC, Terminal unit AHU and Fan coil unit, Customized integrated DX AC, Clean/Purified constant temp. and humidity AC and other special industry/Commercial use AC. With ISO9001 certification and adhering to strict national quality standards.

More than 200 skilled workers with over 8 years of refrigeration equipment expertise, and 30+ technical engineers to design and produce high-quality, cost-effective solutions. Our core strengths include rapid turnkey delivery, seamless pre-sales to post-installation support, competitive pricing, and a proven track record in exporting to worldwide markets with on-site overseas technical assistance. Supported by more than 60 sales professionals domestic and foreign trade, we stay higher in similar industry through active participation in major international exhibitions and continuous R&D innovation.
