Place of Origin:
China
Brand Name:
NOXIN
Certification:
CE, ISO9001
Model Number:
NFLLG~70S, 100S, 130S Series

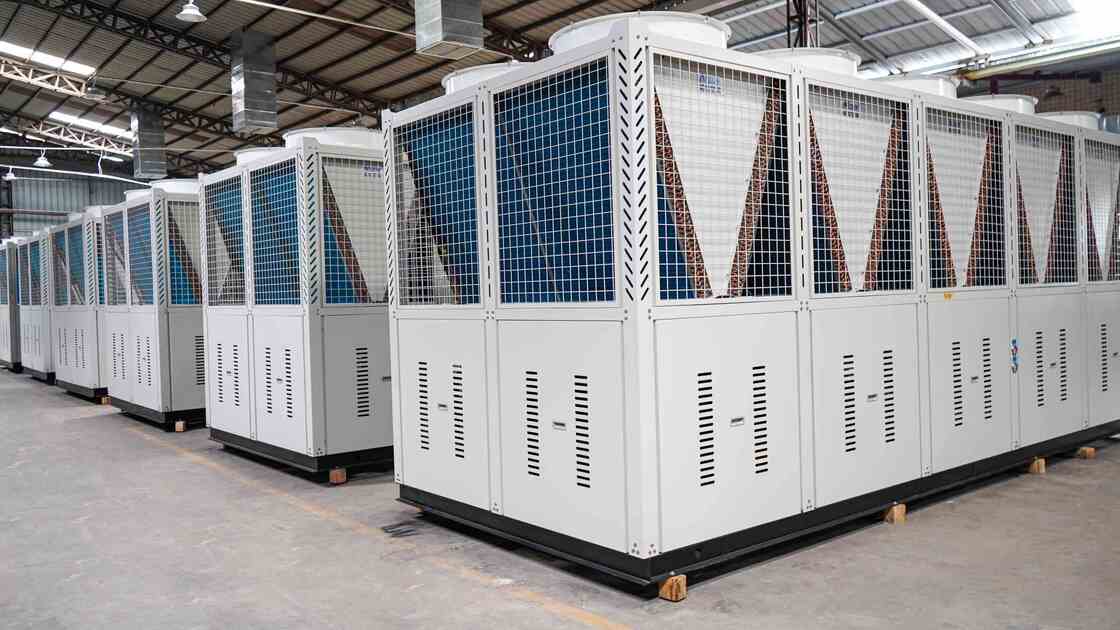

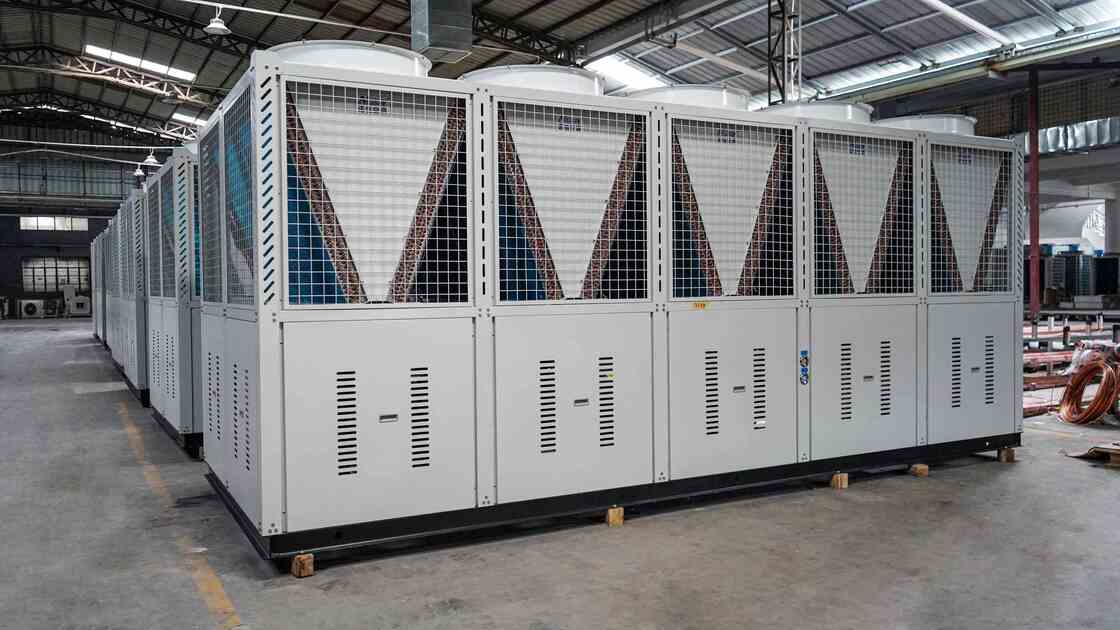

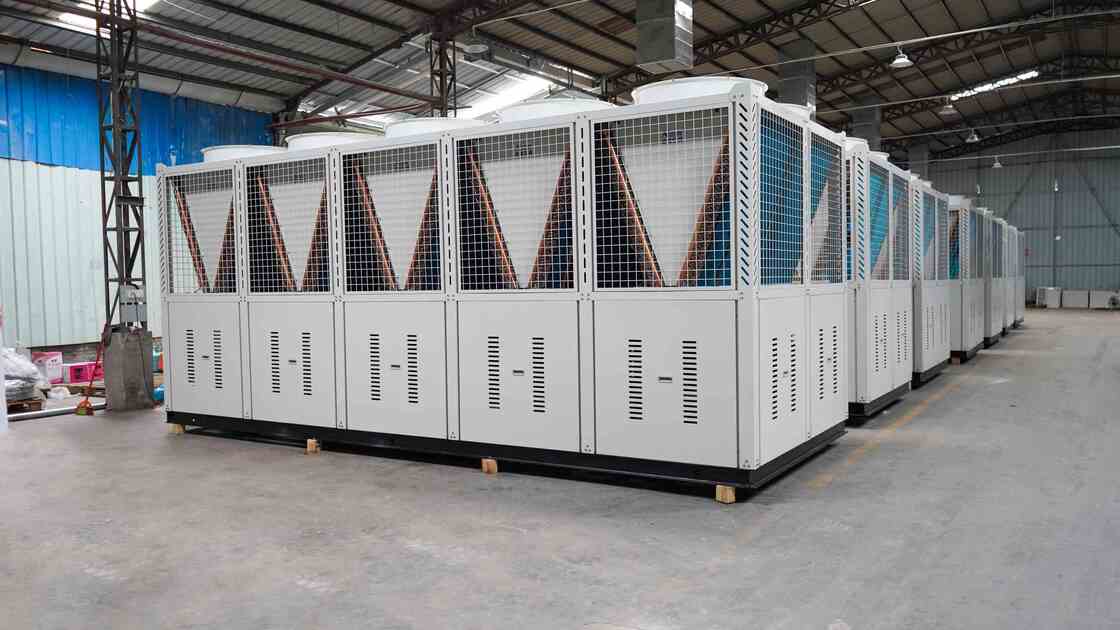

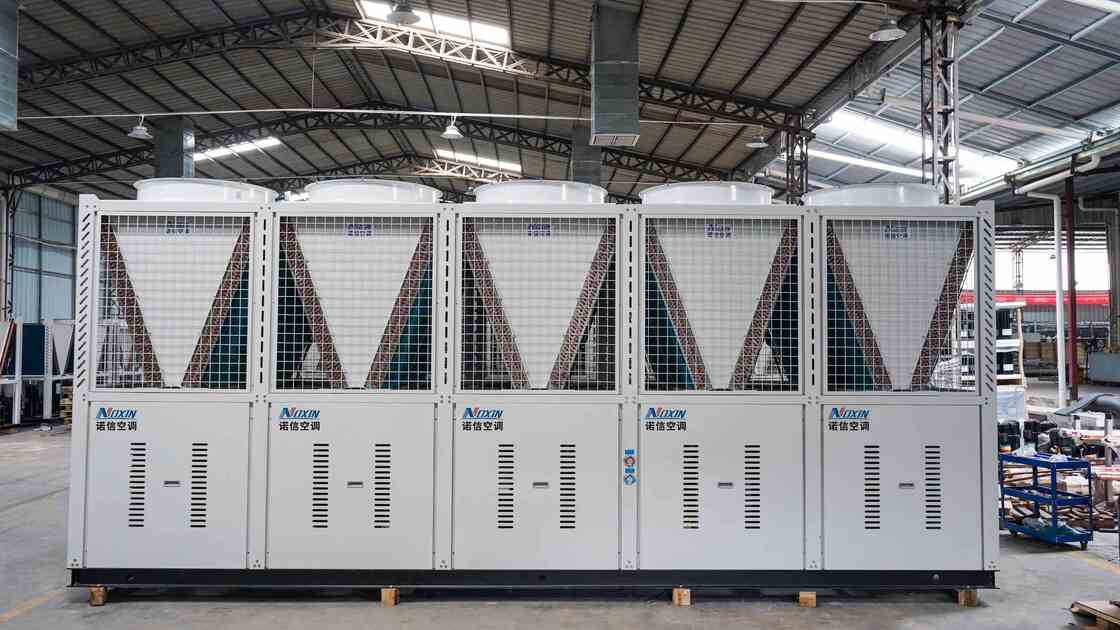

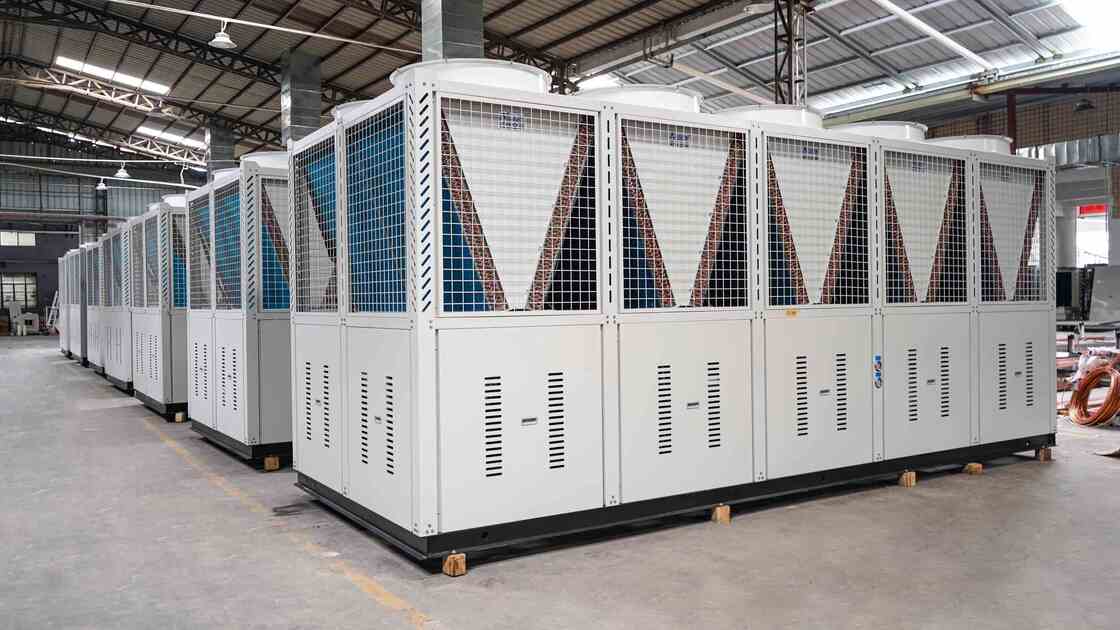

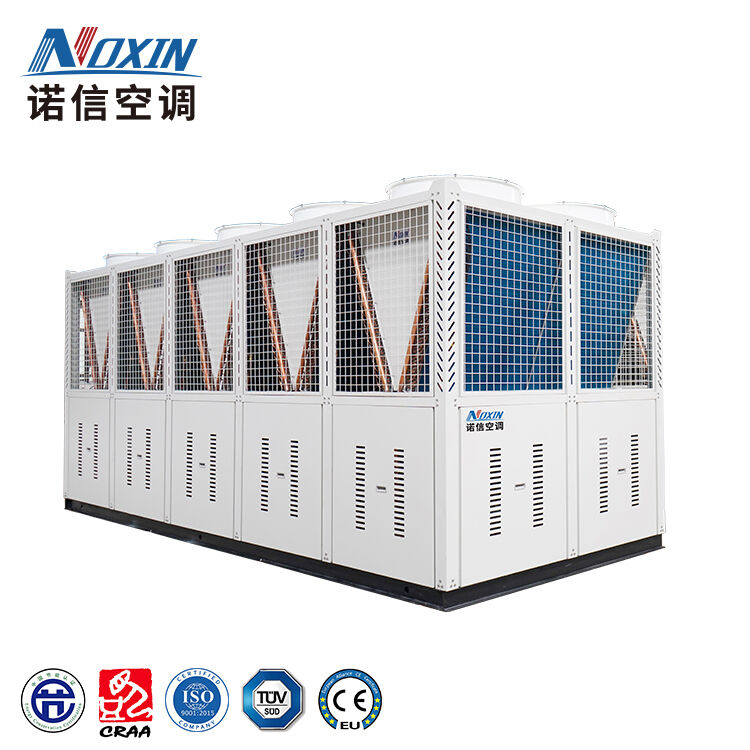

100Ton 150Ton 200Ton Screw Type Air Cooling Water Chiller For HVAC System
※ Introduction
Screw type air cooled chiller adopts high-efficiency screw compressors, widely used for different occasions. In addition, the unit can achieve multi-stage energy regulation or stepless regulation according to the changes in cooling load, operates smoothly, has high cooling efficiency and good energy-saving performance. With simple structure, easyto install, small footprint. could be directly installed and used without cooling tower and water pump. Optional heat recovery for the water chiller.
The unit offers a variety of refrigerant options, including R22, R407C, R134a and other refrigerant media. The outlet temperature of the chilled water can be adjusted from 5 to 20 degrees. The standard power supply system is 380V/3Ph/50HZ, and other voltages can also be customized. It can be modularly designed and freely combined.
※ Features
※ Specifications
| Model NFLLG~ | 70S | 100S | 130S | 150S | 180S | 190S | |||||||||
| Refrigerant | R22 | R407C | R22 | R407C | R22 | R407C | R22 | R407C | R22 | R407C | R22 | R407C | |||
| Capacity | Rated Cooling Capacity | ×103kcal/h | 64.156 | 62.952 | 88.752 | 83.936 | 116.616 | 108.446 | 125.216 | 121.776 | 155.66 | 148.178 | 167.528 | 161.852 | |
| KW | 74.6 | 73.2 | 103.2 | 97.6 | 135.6 | 126.1 | 145.6 | 141.6 | 181 | 172.3 | 194.8 | 188.2 | |||
| Ton | 21.21 | 20.81 | 29.34 | 27.75 | 38.56 | 35.85 | 41.40 | 40.26 | 51.46 | 48.99 | 55.39 | 53.51 | |||
| Electric Power | Power Supply | 380V/3Ph/50Hz | |||||||||||||
| Total Input Power | KW | 30.3 | 30.0 | 40.1 | 39.4 | 50.5 | 49.0 | 55.7 | 55.4 | 60.2 | 60.4 | 65.8 | 66.2 | ||
| Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temperature protection, Low & High pressure protection, Low temperature protection, Oil level protection, Water flow protection etc |
||||||||||||||
| Compressor | Type | Semi-Hermertic Screw Type | |||||||||||||
| Comp. Model | RC2-100B | RC2-140B | RC2-180B | RC2-200B | RC2-230B | RC2-260B | |||||||||
| Comp. Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| Input Power | KW | 27.5 | 27.2 | 36.4 | 35.7 | 45.7 | 44.2 | 50.3 | 50.0 | 60.2 | 60.4 | 65.8 | 66.2 | ||
| Comp. Current | A | 46.7 | 46.2 | 61.8 | 60.8 | 78.3 | 76.2 | 85.3 | 84.8 | 102.2 | 102.4 | 111.1 | 111.9 | ||
| Capacity Control | 0, 33%, 66%, 100% | 0, 25%, 50%, 75%, 100% | |||||||||||||
| Condenser | Type | Copper Tubes Around With Corrugated Aluminum Fins + Axial Fans | |||||||||||||
| Fan Power* Quantity | KW*Pcs | 0.937*3 | 0.937*4 | 1.2*4 | 1.345*4 | 0.937*6 | 2.0*4 | ||||||||
| Evaporator | Type | Shell Tube Type | |||||||||||||
| Water Side Max Pressure | MPa | 1 | |||||||||||||
| Diameter of Inlet/Outlet | DN | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 100 | 100 | ||
| Inlet / Outlet Water Temp. | °C | 12°C / 7°C | |||||||||||||
| Chilled Water Flow | m3/h | 12.83 | 12.59 | 17.75 | 16.79 | 23.32 | 21.69 | 25.04 | 24.36 | 31.13 | 29.64 | 33.51 | 32.37 | ||
| Dimension | Length | mm | 2650 | 2210 | 2250 | 2250 | 2480 | 2480 | |||||||
| Width | mm | 910 | 1300 | 2100 | 2100 | 2100 | 2100 | ||||||||
| Height | mm | 1900 | 2050 | 2300 | 2300 | 2400 | 2400 | ||||||||
| Model NFLLG~ | 220S | 260S | 290S | 310S | 370S | 180S | |||||||||
| Refrigerant | R22 | R407C | R22 | R407C | R22 | R407C | R22 | R407C | R22 | R407C | R22 | R407C | |||
| Capacity | Rated Cooling Capacity | ×103kcal/h | 197.628 | 191.78 | 232.544 | 221.622 | 250.432 | 242.176 | 272.19 | 261.354 | 330.67 | 309.342 | 345.806 | 326.628 | |
| KW | 229.8 | 223 | 270.4 | 257.7 | 291.2 | 281.6 | 316.5 | 303.9 | 384.5 | 359.7 | 402.1 | 379.8 | |||
| Ton | 65.34 | 63.41 | 76.88 | 73.27 | 82.80 | 80.07 | 89.99 | 86.41 | 109.33 | 102.27 | 114.33 | 107.99 | |||
| Electric Power | Power Supply | 380V/3Ph/50Hz | |||||||||||||
| Total Input Power | KW | 74.6 | 73.8 | 98.5 | 98.1 | 105.9 | 106.2 | 115.5 | 115.2 | 139.9 | 135.6 | 126.7 | 126.2 | ||
| Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temperature protection, Low & High pressure protection, Low temperature protection, Oil level protection, Water flow protection etc |
||||||||||||||
| Compressor | Type | Semi-Hermetic Screw Type | |||||||||||||
| Comp. Model | RC2-300B | RC2-340B | RC2-370B | RC2-410B | RC2-470B | RC2-510B | |||||||||
| Comp. Quantity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |||
| Input Power | KW | 74.6 | 73.8 | 86.5 | 86.1 | 93.9 | 94.2 | 103.5 | 103.2 | 123.9 | 119.6 | 126.7 | 126.2 | ||
| Comp. Current | A | 127.7 | 126.5 | 150.2 | 149.5 | 162.1 | 162.6 | 179.6 | 179.1 | 210.1 | 202.9 | 215.6 | 214.8 | ||
| Capacity Control | 0, 25%, 50%, 75%, 100% | ||||||||||||||
| Condenser | Type | Copper Tubes Around With Corrugated Aluminum Fins + Axial Fans | |||||||||||||
| Fan Power* Quantity | KW*Pcs | 1.2*6 | 2.0*6 | 2.0*6 | 2.0*6 | 2.0*8 | 2.0*8 | ||||||||
| Evaporator | Type | Shell Tube Type | |||||||||||||
| Water Side Max Pressure | MPa | 1 | |||||||||||||
| Diameter of Inlet/Outlet | DN | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 125 | 125 | 125 | 125 | ||
| Inlet / Outlet Water Temp. | °C | 12°C / 7°C | |||||||||||||
| Chilled Water Flow | m3/h | 39.53 | 38.36 | 46.51 | 44.32 | 50.09 | 48.44 | 54.44 | 52.27 | 66.13 | 61.87 | 69.16 | 65.33 | ||
| Dimension | Length | mm | 3400 | 3400 | 3400 | 3400 | 4500 | 5000 | |||||||
| Width | mm | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | ||||||||
| Height | mm | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | ||||||||
※ Pictures
※ Exhibition
