Place of Origin:
China
Brand Name:
NOXIN
Certification:
CE, ISO9001
Model Number:
NFLWX-03SI, NFLWX-05SI, NFLWX-10DI etc

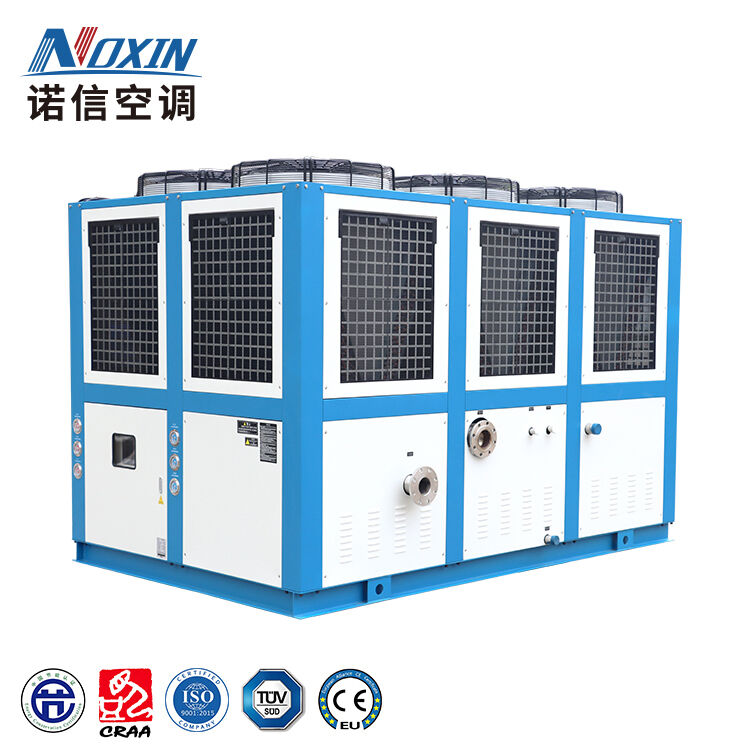

40HP-80HP Industrial Air Cooled Water Chiller For Injection Molding Machine
※ Product Introduction
Industrial water chiller is a kind of water cooling equipment that removes heat from a source and it's able to provide constant temperature cold water to user's equipment. The principle is the water in water tank goes through the chiller evaporator and be chilled, and the water pump will pump the chilled water into user's equipment that needs to be cooled, the chilled water will take away the heat inside the equipment, and the hot water will return to the water tank for cooling again, to achieve the role of cooling the equipment.
※ Product Features
◎ Monoblock design, With built-in water pump and S/S water tank, compact structure
◎ Air cooled type without cooling tower, saving space & installation cost
◎ Multi-compressors design for larger capacity units
◎ Optional environmentally friendly refrigerants R407C, R410A etc
◎ Accept customized units: Non-standard power supply, low temperature settings etc.
※ Product Application
As we mentioned above, industrial water chiller is kind of cooling machine to remove heat from a source. There are various of applications using the industrial water chillers, Industrial water chiller is widely used in plastics, electroplating, electronics, chemical, pharmaceutical, printing, food processing and other industrial freezing processes need to use cold water, the chillers could help to improve the efficiency and reduce the costs.
Plastic Injection Machine: Cooling operations involved in mechanical molding.
Electroplating Processing: Control electroplating temperature & shorten electroplating cycle.
Package Machine: Ensure the rapid cooling of the packaging plastic after molding.
Electronics Industry: Stabilize the molecular structure inside electronic components on the production line.
Chemical & Pharmaceutical: Ensuring optimal conditions for production processes.
Food & Beverage Industry: Maintaining precise temperatures for processing and storage.
Printing & Laser Cutting Equipments: Providing cooling water to cool the printing machine & cutter.
Construction industry: Supply chilled water for concrete enhancing the hardness and toughness of the concrete.
※ Product Parts
※ Product Parameter
| Model NFLWX~ | 01SI | 02SI | 03SI | 05SI | 06SI | 08DI | 10DI | 12DI | 15TI | |||
| Rated Cooling Capacity | ×103kcal/h | 2.322 | 4.644 | 8.772 | 13.244 | 16.082 | 21.156 | 26.488 | 32.164 | 39.732 | ||
| KW | 2.7 | 5.4 | 10.2 | 15.4 | 18.7 | 24.6 | 30.8 | 37.4 | 46.2 | |||
| Ton | 0.77 | 1.54 | 2.90 | 4.38 | 5.32 | 6.99 | 8.76 | 10.63 | 13.14 | |||
| Power Supply | 220V/1Ph/50Hz | 380V/3Ph/50Hz | ||||||||||
| Input Power | KW | 1.34 | 2.19 | 3.55 | 5.528 | 6.382 | 8.88 | 10.98 | 12.8 | 16.897 | ||
| Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection | |||||||||||
| Compressor | Type | Rotor Type | Hermertic Scroll Type | |||||||||
| Input Power | KW | 0.88 | 1.69 | 3.0 | 4.45 | 5.2 | 6.8 | 8.9 | 10.4 | 13.35 | ||
| Comp. Qty | 1 | 1 | 1 | 1 | 1 | 1 or 2 | 2 | 2 | 3 | |||
| Comp. Current | A | 5.7 | 7.8 | 9.1 | 12.4 | 15.6 | 18.2 | 23.4 | ||||
| Refrigerant | R22 / R410A | R407C | ||||||||||
| Condenser | Type | Ripple Aluminum Fins around Copper Tubes | ||||||||||
| Fan Input Power | KW | 0.09 | 0.13 | 0.18 | 0.328 | 0.432 | 0.58 | 0.58 | 0.9 | 1.347 | ||
| Evaporator | Type | Tank Coil Type | ||||||||||
| Diameter | inch | 1/2" | 3/4" | 1" | 1" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | ||
| Chilled Water Flow | m3/h | 0.46 | 0.93 | 1.75 | 2.65 | 3.22 | 4.23 | 5.30 | 6.43 | 7.95 | ||
| Tank Volume | L | 20 | 40 | 65 | 65 | 80 | 130 | 130 | 160 | 190 | ||
| Water Pump | Input Power | KW | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | |
| Water Flow | m3/h | 2 | 2 | 6 | 7.2 | 7.2 | 8 | 8 | 8 | 18 | ||
| Pump head | m | 15 | 15 | 22 | 26 | 26 | 30 | 30 | 30 | 25 | ||
| Dimension | Length | mm | 660 | 670 | 1040 | 1100 | 1100 | 1400 | 1400 | 1500 | 1870 | |
| Width | mm | 600 | 600 | 580 | 600 | 600 | 700 | 700 | 800 | 780 | ||
| Height | mm | 880 | 1080 | 1200 | 1325 | 1325 | 1540 | 1540 | 1610 | 1700 | ||
| Model NFLWX~ | 20DI | 25DI | 30TI | 40FI | 50FI | 60FI | 75TI | 100FI | 125FI | |||
| Rated Cooling Capacity | ×103kcal/h | 54.524 | 63.984 | 81.786 | 109.048 | 127.968 | 161.336 | 199.6146 | 266.17 | 332.691 | ||
| KW | 63.4 | 74.4 | 95.1 | 126.8 | 148.8 | 187.6 | 232.11 | 309.5 | 386.85 | |||
| Ton | 18.03 | 21.15 | 27.04 | 36.05 | 42.31 | 53.34 | 66.00 | 88.00 | 109.99 | |||
| Power Supply | 380V/3Ph/50Hz | |||||||||||
| Input Power | KW | 21.174 | 24.574 | 31.46 | 41.948 | 48.748 | 59.2 | 74.722 | 97.004 | 122.88 | ||
| Safety Protection | Phase reversion protection, Phase lack protection, Overload current protection, Discharge air temp. protection, Low & High pressure protection, Low temp. protection, Water flow protection | |||||||||||
| Compressor | Type | Hermertic Scroll Type | ||||||||||
| Input Power | KW | 17.1 | 20.5 | 25.65 | 34.2 | 41 | 50 | 61.6 | 82.12 | 102.65 | ||
| Comp. Qty | 2 | 2 | 3 | 4 | 2 Or 4 | 4 | 3 | 4 | 5 | |||
| Comp. Current | A | 29.4 | 34.6 | 44.1 | 58.8 | 69.2 | 88.8 | 106.83 | 142.5 | 178.05 | ||
| Refrigerant | R407C | R407C/ R410A |
R410A | |||||||||
| Condenser | Type | Ripple Aluminum Fins around Copper Tubes | ||||||||||
| Fan Input Power | KW | 1.874 | 1.874 | 2.81 | 3.748 | 3.748 | 5.2 | 5.622 | 7.384 | 9.23 | ||
| Evaporator | Type | Tank Coil Type | Shell Tube Type | |||||||||
| Diameter | inch | 2" | 2" | 2-1/2" | 3" | 3" | 3" | 3" | 4" | 5" | ||
| Chilled Water Flow | m3/h | 10.90 | 12.80 | 16.36 | 21.81 | 25.59 | 32.27 | 39.92 | 53.23 | 66.54 | ||
| Tank Volume | L | 290 | 440 | - | - | - | - | - | - | - | ||
| Water Pump | Input Power | KW | 2.2 | 2.2 | 3.0 | 4 | 4 | 4 | 7.5 | 7.5 | 11 | |
| Water Flow | m3/h | 18 | 18 | 25 | 42 | 42 | 42 | 50 | 80 | 90 | ||
| Pump head | m | 25 | 25 | 25 | 21 | 21 | 21 | 29 | 22 | 28 | ||
| Dimension | Length | mm | 2110 | 2110 | 2650 | 1980 | 1980 | 2600 | 2970 | 2600 | 3400 | |
| Width | mm | 990 | 990 | 910 | 1800 | 1800 | 2170 | 1885 | 2170 | 2100 | ||
| Height | mm | 1865 | 1900 | 1900 | 2150 | 2150 | 2150 | 2000 | 2370 | 2150 | ||

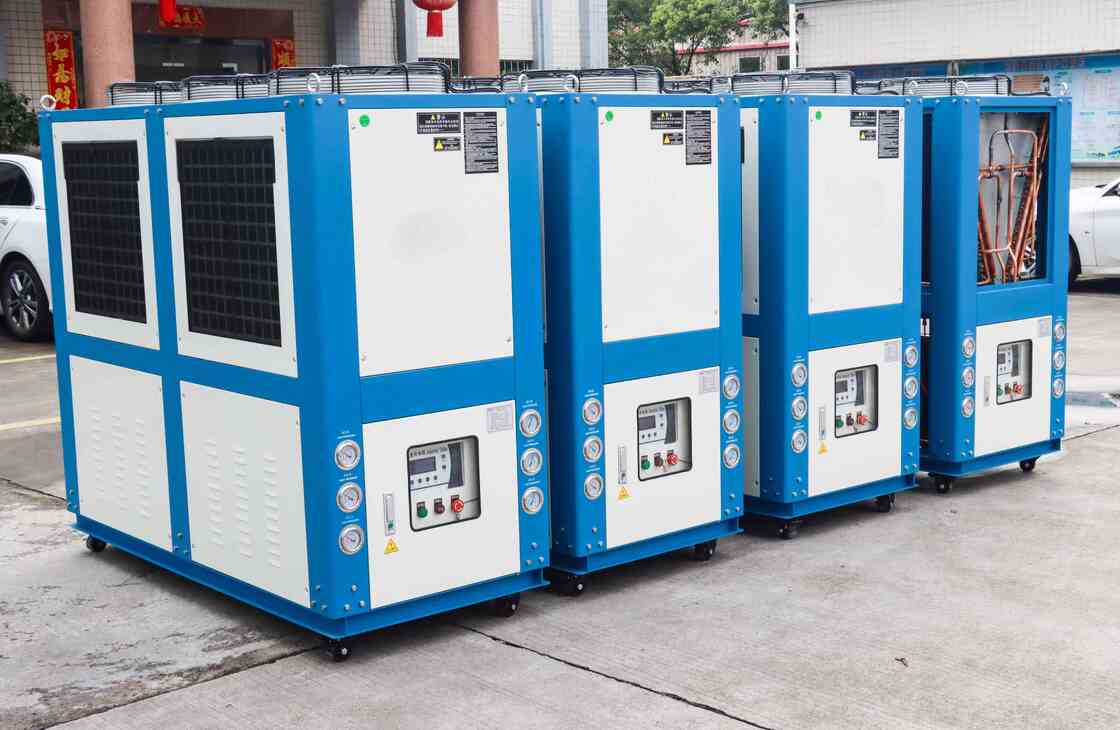

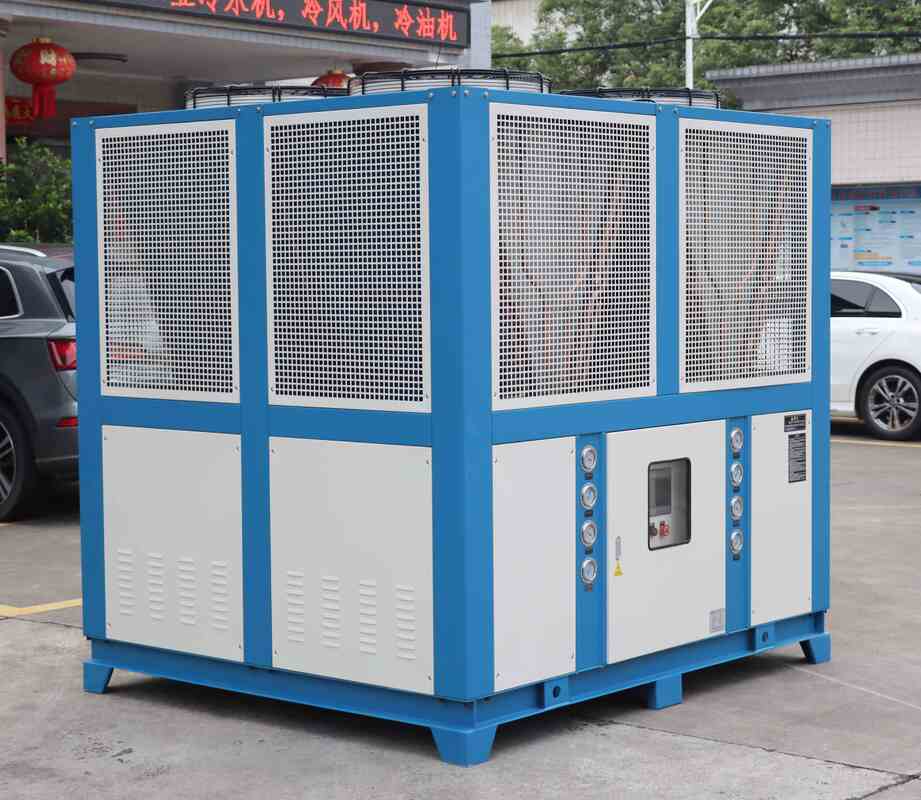

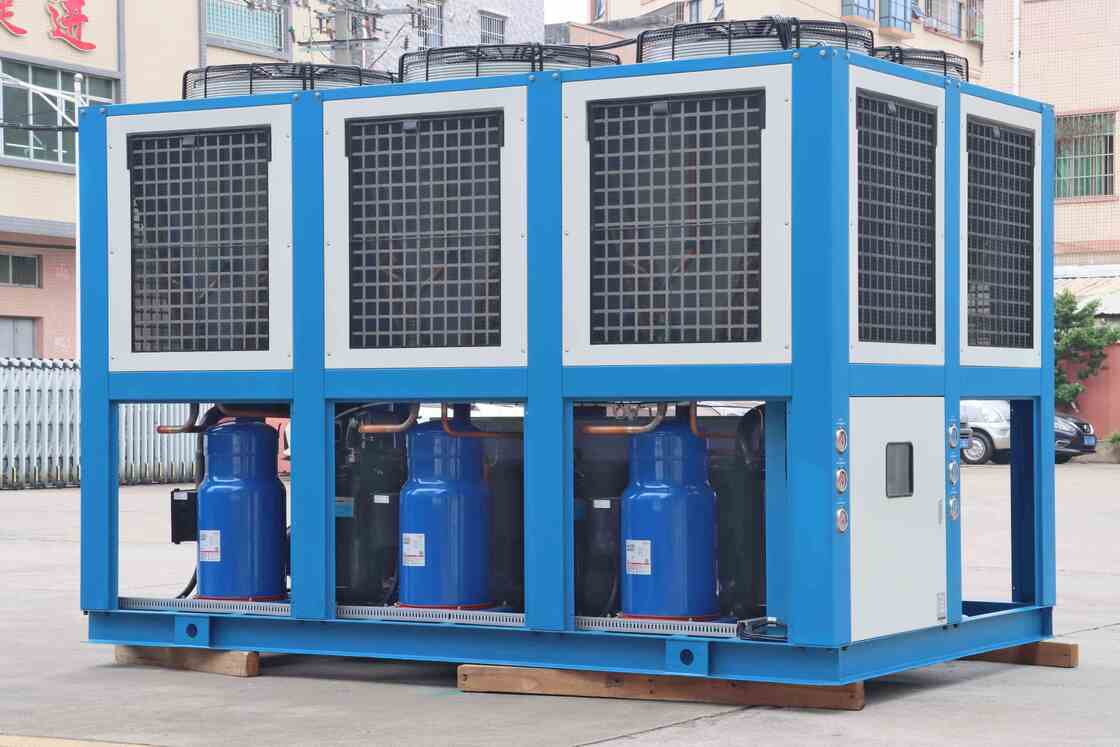

※ Product Pictures
※ Chiller Installation
