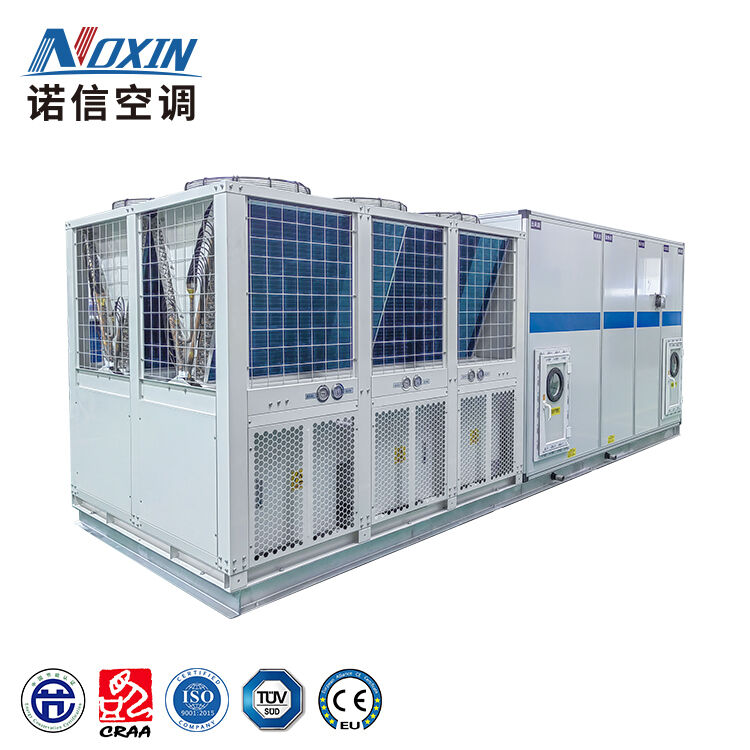

Easy Install Rooftop Air Conditioner Unit 460V 3PH 60HZ Unit R410A 30000CMH Air Supply

Rooftop Type Air Conditioner Easy To Installation Customized 460V/3PH/60HZ Unit R410A 30000CMH Air Supply

✳️ Product Details

Rooftop air conditioner, also called the All In One / Integrated type air conditioner. It's the air cooled DX type air conditioner without cooling water or chilled water systems. It is widely applicable to the regulation of temperature, humidity and cleanliness in large and medium-sized factories and workshops in areas where it is inconvenient to install waterway systems or lacking of water. Its cooling, heating, humidification, air supply, air purification, electrical control and other functions are assembled in a horizontal box. As it is mostly installed on the roof, it is called a rooftop air conditioner. Rooftop air conditioners are generally equipped with measures such as sun protection, air protection and rain protection in terms of structure and surface area treatment. According to the specific requirements of the environment where the unit is used, the unit can also be treated with explosion-proof, anti-corrosion and other measures. The unit can be configured as required as: cooling type, heat pump type, electric heating type, clean type, constant temperature and humidity type, constant temperature and humidity clean type etc.It is widely applied in large-space buildings, such as large conference centers, stadiums, exhibition centers, large supermarkets, theaters, electronic workshops, etc.

◎ Space-Saving  The unit is installed on the roof or outdoor open space, not occupying valuable ground or indoor space, making it particularly suitable for commercial or industrial sites with tight space.

◎ Easy Installation No complex piping system is required. Most roof-mounted air conditioning units are factory-assembled and do not need to invest in auxiliary equipment such as cooling towers and water pumps. On-site, only the air ducts and power supply need to be connected to put them into use quickly, reducing the on-site construction workload.

✳️ Accessory Selection

1. Compressor. All compressors of world-renowned brands are adopted to ensure the stable operation of core components and reduce the

failure rate. We accept a very wide range of customized power supplies For example, 220V/3PH/60HZ, 380-415V /3PH/50/60HZ,

440V/3PH/50/60HZ, 460V/3PH/50/60HZ, 480V/3PH/50/60HZ. Environmentally friendly refrigerants will also be applicable,

such as R410A, R407C, and R134A etc.

2. Condenser & Evaporator (Pipe coil heat exchanger). High-efficiency purple copper tube through corrugated hydrophilic aluminum fin

heat exchanger, highly efficient heat exchange and long service life. Transfering heat via refrigerant. Fins expand surface area,

enhancing heat exchange with air. Refrigerant changes phase (condenses/evaporates), absorbing/releasing heat.

Air flows over fins, facilitating efficient thermal transfer for cooling/heating.

3. Expansion valve. regulates refrigerant flow into evaporators. It reduces high-pressure liquid refrigerant to low-pressure and

low-temperature mist via a restricted orifice. Sensing evaporator outlet temperature (via a thermal bulb), it adjusts opening

size to match cooling demand. This phase change readies refrigerant for heat absorption, ensuring efficient,

stable HVAC/refrigeration system operation.

4. Control systems. The HVAC system dedicated control program independently developed by China Electronics Technology Company

provides all-weather operation monitoring for constant temperature and humidity air conditioning units. The touch large screen

makes the operation status and parameter adjustment of the unit more convenient, simple and easy to learn. In addition,

when used in conjunction with electrical components of world-renowned brands, it greatly reduces the circuit failure

problems of the unit, thereby ensuring the normal operation of the entire unit and maintaining a longer service life.

5. Motor and fan, air supply systems. Y series three-phase asynchronous motor. Insulation above Class B, the highest IP54 protection,

high efficiency, energy saving, high starting torque, low noise, small vibration, safe and reliable operation. Could be driven by belts

or directly, can use variable frequency motors or brand EC fans. It precisely controls the air volume and regulates the

air circulation speed, making the airflow more uniform and improving the heat exchange efficiency. Belt drive forward, forward

multi-wing centrifugal fan, also could use the VFD fans or EC fans. Fans pass all the static and dynamic balance correction,

low noise, static pressure with high efficiency. Unit static pressure could be customized according to user requirements.

Centrifugal fan Selecting the appropriate fan based on the air volume and the fan selection software, and pair it with

a high-quality motor. Then, use belt drive to form the power and air supply system of the entire unit.

6. Purified and Constant temperature & humidity accessories. Clean air conditioner filters remove dust, particles & contaminants,

ensuring air purity for clean rooms/precision environments. Humidifiers maintain proper humidity; electric heaters regulate temperature,

both optimizing comfort and process stability. It is usually applicable to fields such as data centers, hospital operating rooms,

biopharmaceuticals, chip production, cosmetics production, medical devices, and R&D and production in the lithium battery industry.

Hot Water Coil Heating; Steam Heating Coil Heating; Electric Heater: PTC ceramic electric heating.



Humidifier. The humidifier is widely used for different application including clean room, spray room, hospital, biology
laboratory etc. The humidifier including Electrode humidifier, High pressure mist humidification, High pressure spray
humidification, Wet film humidifier etc, which could achive ±5% humidity range.

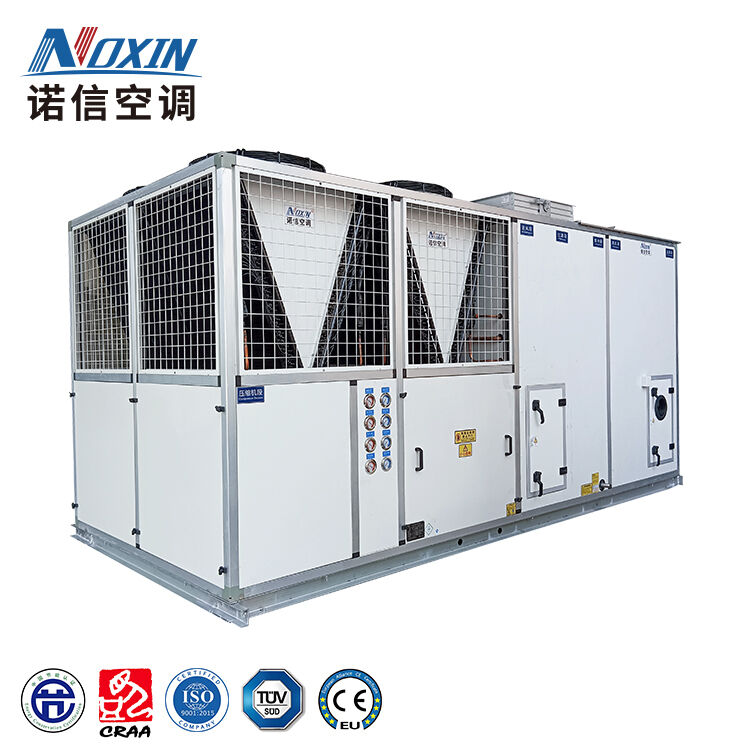

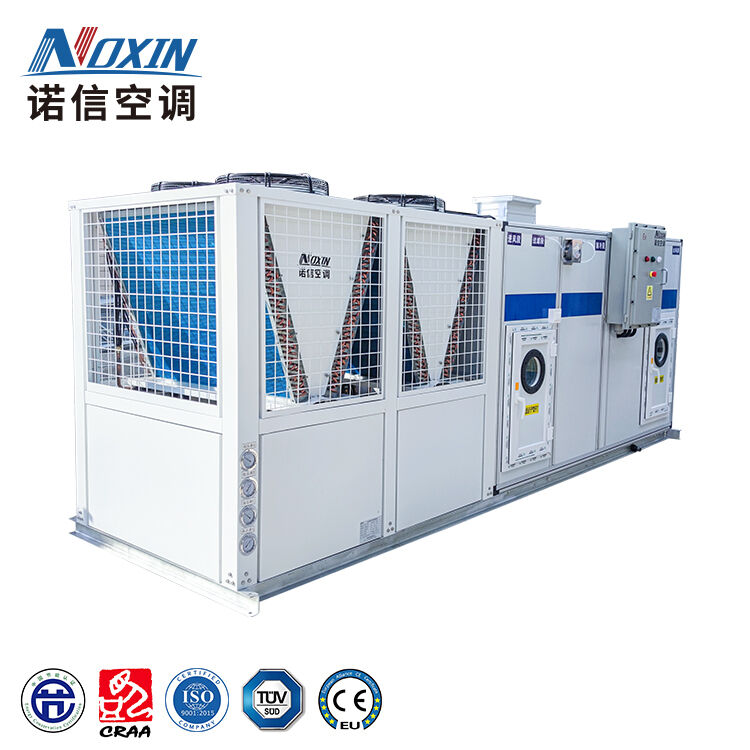

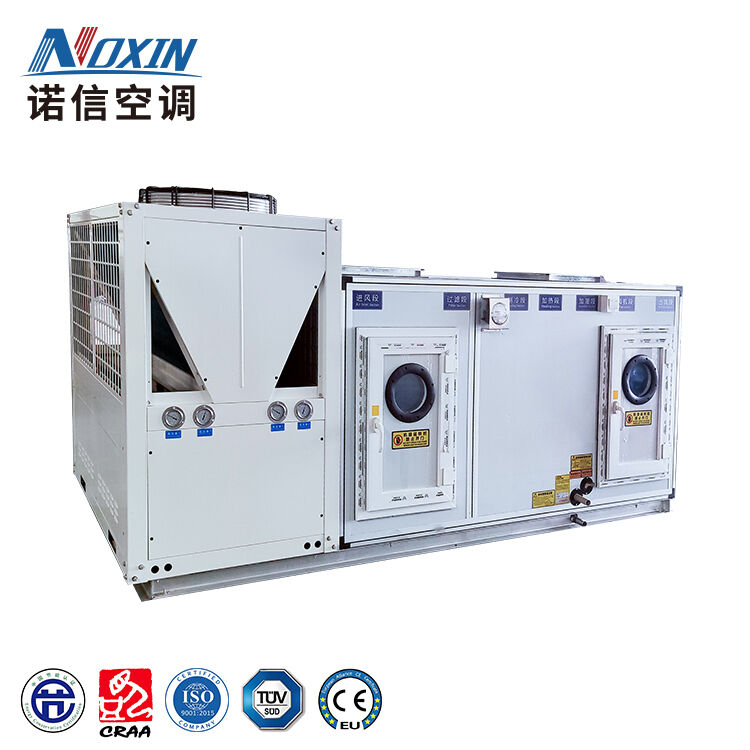

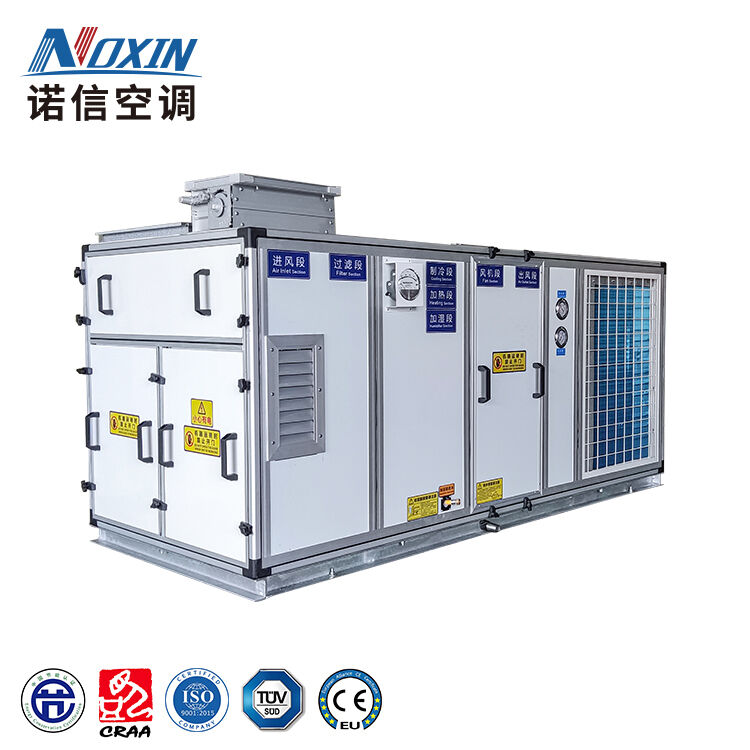

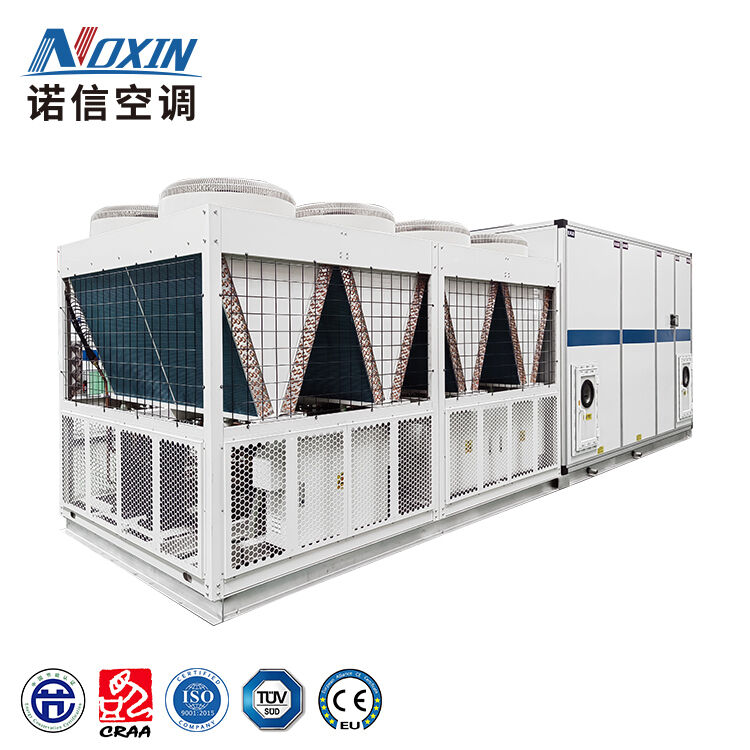

✳️ Product Pictures
