Rotary Desiccant Wheel Dehumidification Air Handling Unit AHU For Lithium Battery Production

Rotary Desiccant Wheel Dehumidification AHU Air Handling Unit for Lithium Battery Production

✳️ Product Introduction

✳️ Product Application

Rotary dehumidification air handling unit /air conditioner is mainly used in industrial and commercial sectors, such as Pharmaceutical workshops, Food processing plants, Electronic manufacturing facilities, and Lithium battery drying rooms, where strict humidity control is required.

✳️ Accessory Selection

The desiccant wheel, also known as a silica gel desiccant wheel or rotary desiccant core, is the core component of a rotary desiccant dehumidifier. It is a highly efficient air drying device based on the principle of physical adsorption. It is cylindrical in shape and composed of dense honeycomb channels inside. This design greatly increases the contact area between the moisture-absorbing material and the air, thereby improving adsorption efficiency. Simultaneously, its substrate typically uses high-temperature resistant ceramic fiber paper, glass fiber, or aluminum inorganic fiber as a support carrier, and a highly efficient desiccant, primarily silica gel or molecular sieve, is coated on the substrate. These materials are porous and can physically adsorb water molecules from the air through capillary action.

1. Compressor. All compressors of world-renowned brands are adopted to ensure the stable operation of core components and reduce the

failure rate. We accept a very wide range of customized power supplies For example, 220V/3PH/60HZ, 380-415V /3PH/50/60HZ,

440V/3PH/50/60HZ, 460V/3PH/50/60HZ, 480V/3PH/50/60HZ. Environmentally friendly refrigerants will also be applicable,

such as R410A, R407C, and R134A etc.

2. Condenser & Evaporator (Pipe coil heat exchanger). High-efficiency purple copper tube through corrugated hydrophilic aluminum fin

heat exchanger, highly efficient heat exchange and long service life. Transfering heat via refrigerant. Fins expand surface area,

enhancing heat exchange with air. Refrigerant changes phase (condenses/evaporates), absorbing/releasing heat.

Air flows over fins, facilitating efficient thermal transfer for cooling/heating.

3. Expansion valve. regulates refrigerant flow into evaporators. It reduces high-pressure liquid refrigerant to low-pressure and

low-temperature mist via a restricted orifice. Sensing evaporator outlet temperature (via a thermal bulb), it adjusts opening

size to match cooling demand. This phase change readies refrigerant for heat absorption, ensuring efficient,

stable HVAC/refrigeration system operation.

4. Control systems. The HVAC system dedicated control program independently developed by China Electronics Technology Company

provides all-weather operation monitoring for constant temperature and humidity air conditioning units. The touch large screen

makes the operation status and parameter adjustment of the unit more convenient, simple and easy to learn. In addition,

when used in conjunction with electrical components of world-renowned brands, it greatly reduces the circuit failure

problems of the unit, thereby ensuring the normal operation of the entire unit and maintaining a longer service life.

5. Motor and fan, air supply systems. Y series three-phase asynchronous motor. Insulation above Class B, the highest IP54 protection,

high efficiency, energy saving, high starting torque, low noise, small vibration, safe and reliable operation. Could be driven by belts

or directly, can use variable frequency motors or brand EC fans. It precisely controls the air volume and regulates the

air circulation speed, making the airflow more uniform and improving the heat exchange efficiency. Belt drive forward, forward

multi-wing centrifugal fan, also could use the VFD fans or EC fans. Fans pass all the static and dynamic balance correction,

low noise, static pressure with high efficiency. Unit static pressure could be customized according to user requirements.

Centrifugal fan Selecting the appropriate fan based on the air volume and the fan selection software, and pair it with

a high-quality motor. Then, use belt drive to form the power and air supply system of the entire unit.

6. Purified and Constant temperature & humidity accessories. Clean air conditioner filters remove dust, particles & contaminants,

ensuring air purity for clean rooms/precision environments. Humidifiers maintain proper humidity; electric heaters regulate temperature,

both optimizing comfort and process stability. It is usually applicable to fields such as data centers, hospital operating rooms,

biopharmaceuticals, chip production, cosmetics production, medical devices, and R&D and production in the lithium battery industry.

Hot Water Coil Heating; Steam Heating Coil Heating; Electric Heater: PTC ceramic electric heating.



Humidifier. The humidifier is widely used for different application including clean room, spray room, hospital, biology
laboratory etc. The humidifier including Electrode humidifier, High pressure mist humidification, High pressure spray
humidification, Wet film humidifier etc, which could achive ±5% humidity range.

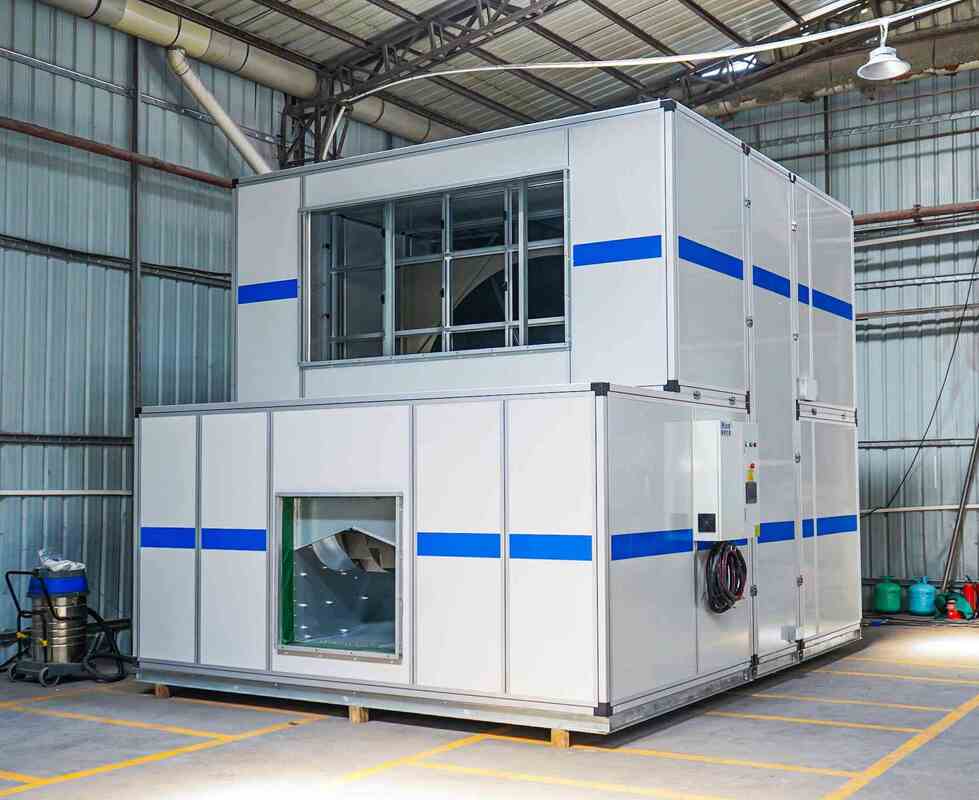

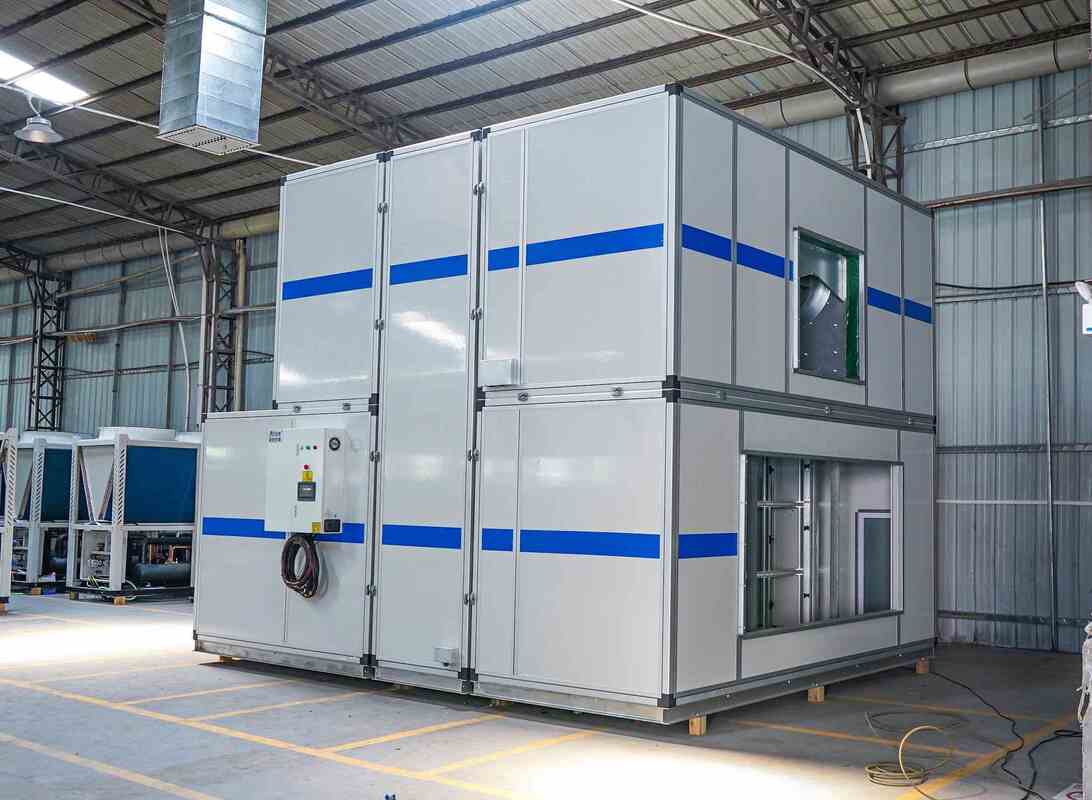

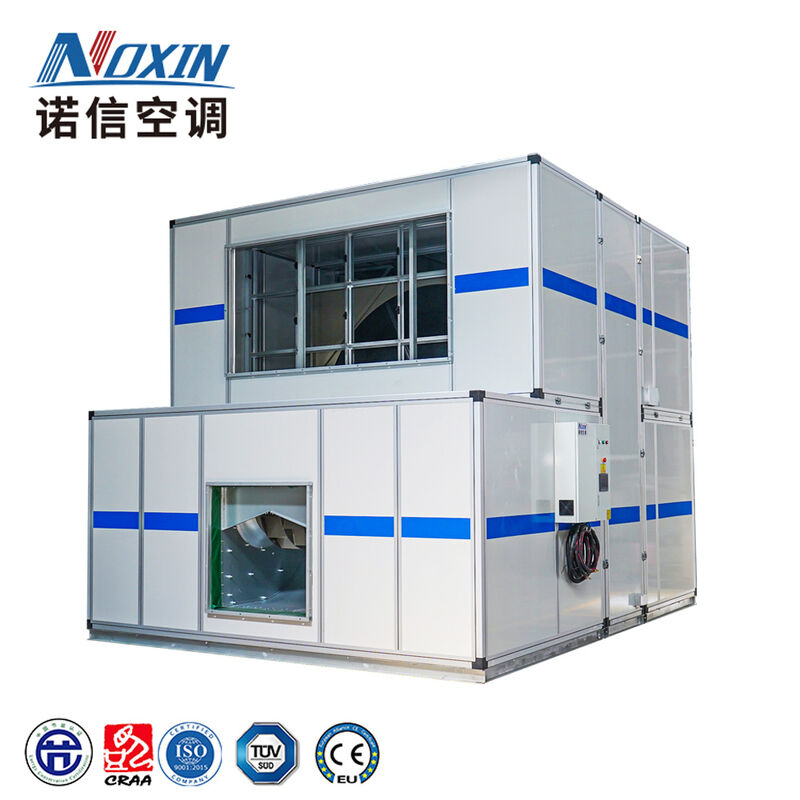

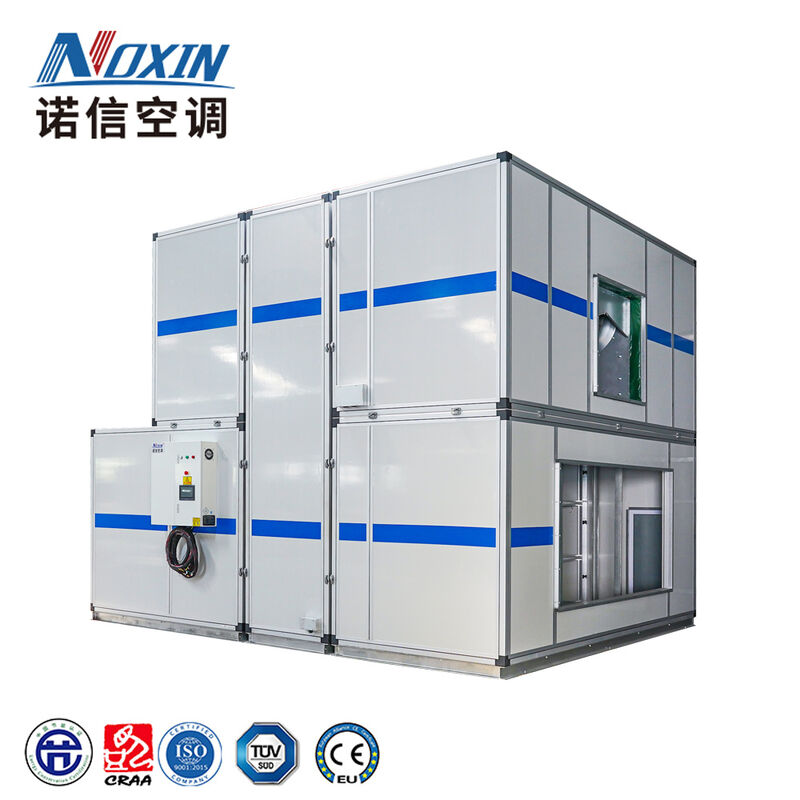

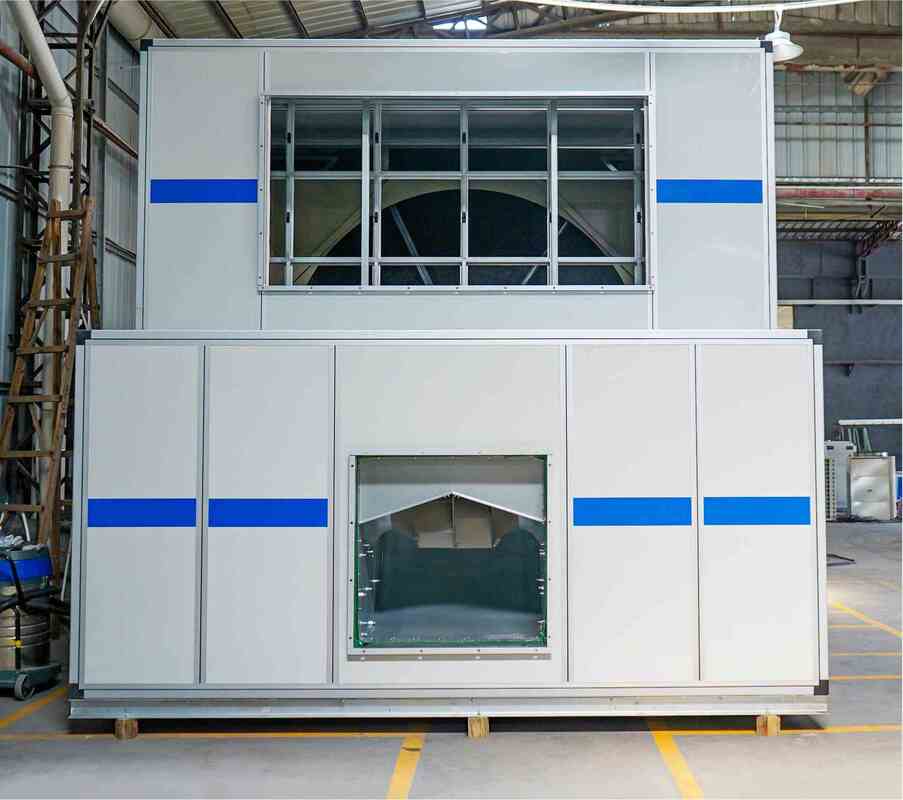

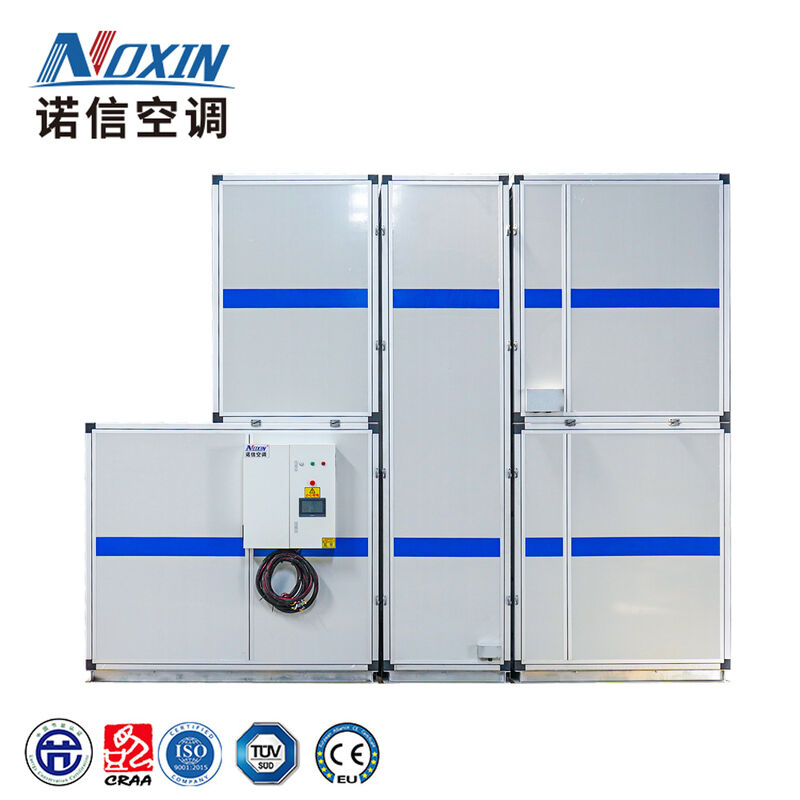

✳️ Product Pictures





✳️ Product Package



✳️ Company Information

Guangdong Nuoxin Industry Co., Ltd. (Hereinafter referred to as "Nuoxin") Established in [2018 Year], "Nuoxin" is a widely known in delivering tailored industrial air conditioner solutions, specializing in non-standard customization for diverse sectors. Our main products including Water Chiller, Water and DX system central AC, Terminal unit AHU and Fan coil unit, Customized integrated DX AC, Clean/Purified constant temp. and humidity AC and other special industry/Commercial use AC. With ISO9001 certification and adhering to strict national quality standards.



More than 200 skilled workers with over 8 years of refrigeration equipment expertise, and 30+ technical engineers to design and produce high-quality, cost-effective solutions. Our core strengths include rapid turnkey delivery, seamless pre-sales to post-installation support, competitive pricing, and a proven track record in exporting to worldwide markets with on-site overseas technical assistance. Supported by more than 60 sales professionals domestic and foreign trade, we stay higher in similar industry through active participation in major international exhibitions and continuous R&D innovation.
