Black Air Cooled Precision Air Conditioner Unit For Muniment Room Data Center

Precision Air Conditioner For Muniment Room Data Center Customized Power Supply R410A R407C

✳️ Product Details

Precision air conditioner delivers unmatched temperature and humidity control (±0.5℃/±5% RH) for critical environments like data centers, labs, and industrial facilities. Engineered with energy-efficient scroll compressors and intelligent inverter technology, it reduces power consumption by up to 30% while ensuring 24/7 reliable operation. Equipped with advanced air filtration and quiet cooling systems, it maintains clean, stable conditions to protect sensitive equipment. Compact design enables easy installation, while remote monitoring supports real-time performance tracking. Trusted for durability and precision, it’s the ideal solution for safeguarding high-value assets and optimizing operational efficiency.

NUOXIN Company excels in professional design and production of air-cooled screw chillers. Our R&D team integrates advanced scroll compression tech and intelligent control systems, optimizing refrigerant cycles for max energy efficiency. Using high-grade stainless steel and anti-corrosion components, we adhere to strict ISO standards in every production step—from precision machining to rigorous testing. Each unit undergoes 24-hour runtime checks, ensuring stable performance, durability, and tailored solutions for diverse industrial needs.

✳️ Accessory Selection

1. Compressor. All compressors of world-renowned brands are adopted to ensure the stable operation of core components and reduce the

failure rate. We accept a very wide range of customized power supplies For example, 220V/3PH/60HZ, 380-415V /3PH/50/60HZ,

440V/3PH/50/60HZ, 460V/3PH/50/60HZ, 480V/3PH/50/60HZ. Environmentally friendly refrigerants will also be applicable,

such as R410A, R407C, and R134A etc.

2. Condenser & Evaporator (Pipe coil heat exchanger). High-efficiency purple copper tube through corrugated hydrophilic aluminum fin

heat exchanger, highly efficient heat exchange and long service life. Transfering heat via refrigerant. Fins expand surface area,

enhancing heat exchange with air. Refrigerant changes phase (condenses/evaporates), absorbing/releasing heat.

Air flows over fins, facilitating efficient thermal transfer for cooling/heating.

3. Expansion valve. regulates refrigerant flow into evaporators. It reduces high-pressure liquid refrigerant to low-pressure and

low-temperature mist via a restricted orifice. Sensing evaporator outlet temperature (via a thermal bulb), it adjusts opening

size to match cooling demand. This phase change readies refrigerant for heat absorption, ensuring efficient,

stable HVAC/refrigeration system operation.

4. Control systems. The HVAC system dedicated control program independently developed by China Electronics Technology Company

provides all-weather operation monitoring for constant temperature and humidity air conditioning units. The touch large screen

makes the operation status and parameter adjustment of the unit more convenient, simple and easy to learn. In addition,

when used in conjunction with electrical components of world-renowned brands, it greatly reduces the circuit failure

problems of the unit, thereby ensuring the normal operation of the entire unit and maintaining a longer service life.

5. Motor and fan, air supply systems. Y series three-phase asynchronous motor. Insulation above Class B, the highest IP54 protection,

high efficiency, energy saving, high starting torque, low noise, small vibration, safe and reliable operation. Could be driven by belts

or directly, can use variable frequency motors or brand EC fans. It precisely controls the air volume and regulates the

air circulation speed, making the airflow more uniform and improving the heat exchange efficiency. Belt drive forward, forward

multi-wing centrifugal fan, also could use the VFD fans or EC fans. Fans pass all the static and dynamic balance correction,

low noise, static pressure with high efficiency. Unit static pressure could be customized according to user requirements.

Centrifugal fan Selecting the appropriate fan based on the air volume and the fan selection software, and pair it with

a high-quality motor. Then, use belt drive to form the power and air supply system of the entire unit.

6. Purified and Constant temperature & humidity accessories. Clean air conditioner filters remove dust, particles & contaminants,

ensuring air purity for clean rooms/precision environments. Humidifiers maintain proper humidity; electric heaters regulate temperature,

both optimizing comfort and process stability. It is usually applicable to fields such as data centers, hospital operating rooms,

biopharmaceuticals, chip production, cosmetics production, medical devices, and R&D and production in the lithium battery industry.

Hot Water Coil Heating; Steam Heating Coil Heating; Electric Heater: PTC ceramic electric heating.



Humidifier. The humidifier is widely used for different application including clean room, spray room, hospital, biology
laboratory etc. The humidifier including Electrode humidifier, High pressure mist humidification, High pressure spray
humidification, Wet film humidifier etc, which could achive ±5% humidity range.

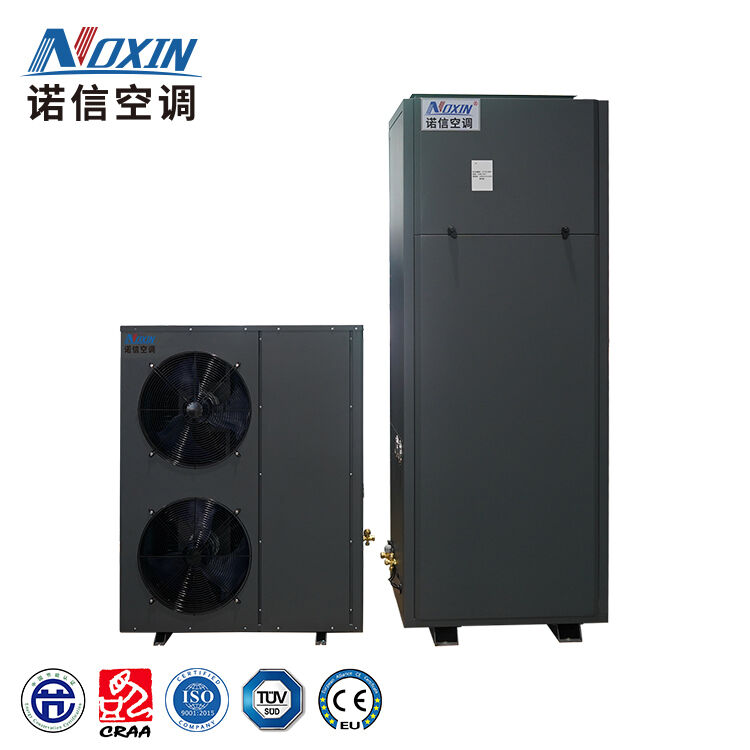

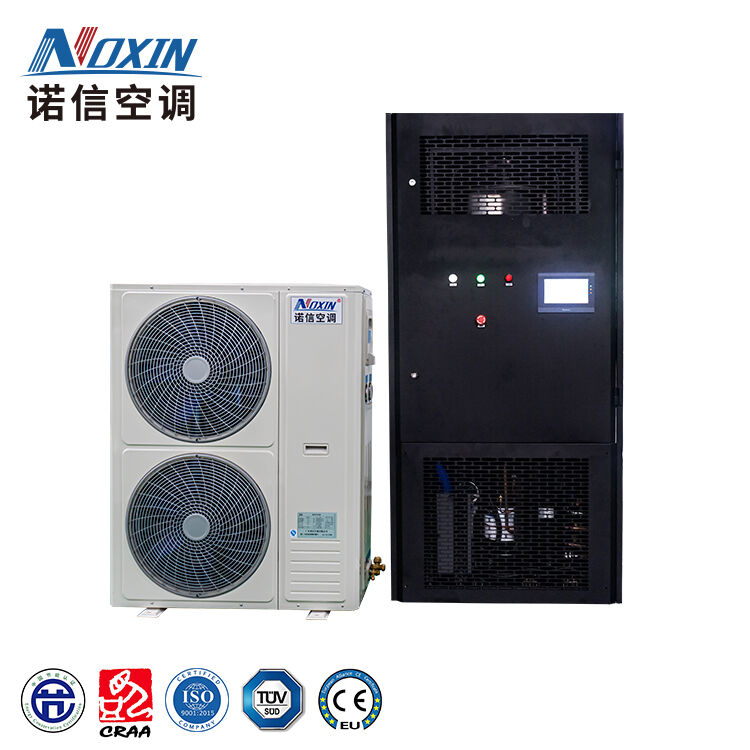

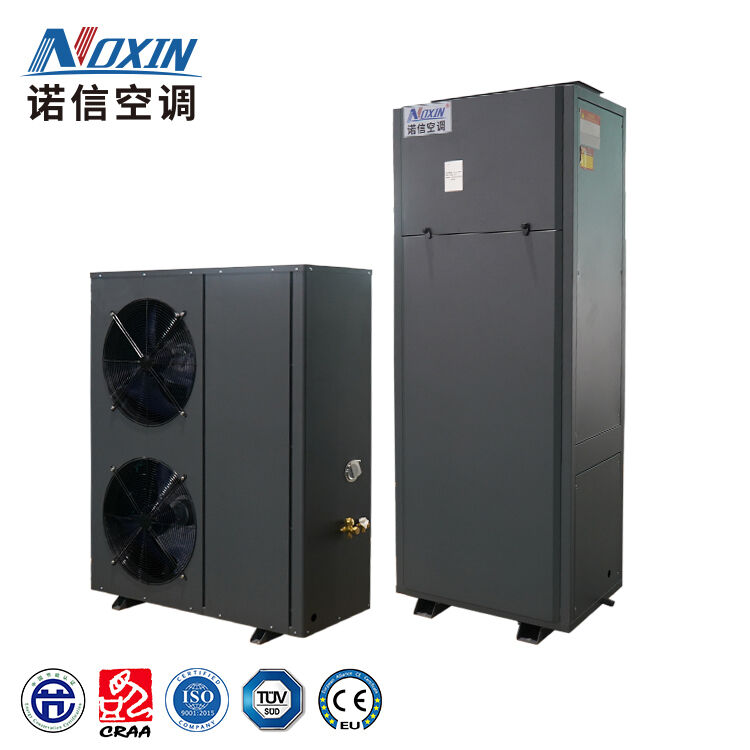

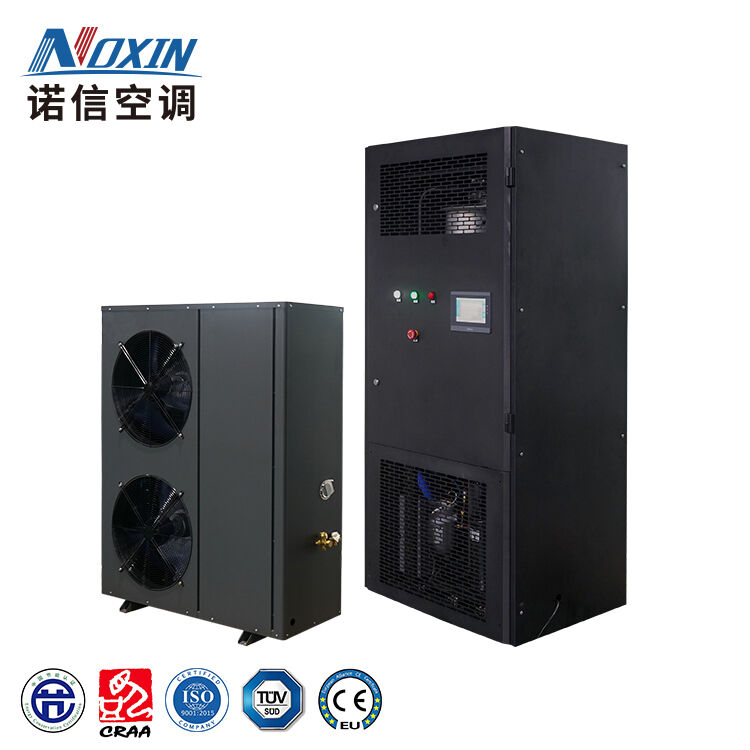

✳️ Product Pictures
